Component Location - Sheet 4 Of 4 - Engine Block Heater (Where Fitted)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

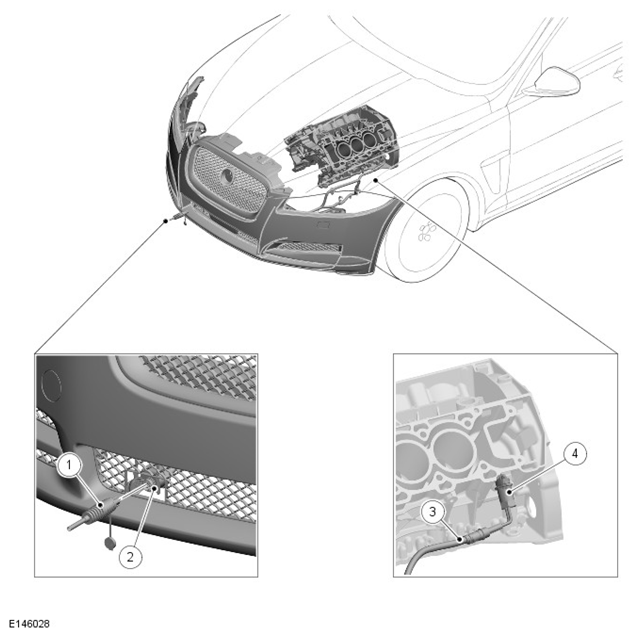

G11418691
ITEM DESCRIPTION
1 Power supply connector
2 Vehicle connector
3 Harness
4 Engine block heater
