Component Location - Sheet 3 Of 4 - Auxiliary Radiator (Where Fitted)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

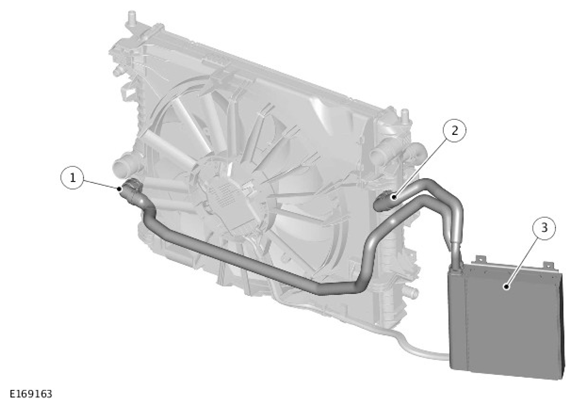

G11418690
ITEM DESCRIPTION
1 Coolant supply hose connection
2 Coolant return hose connection
3 Auxiliary radiator
