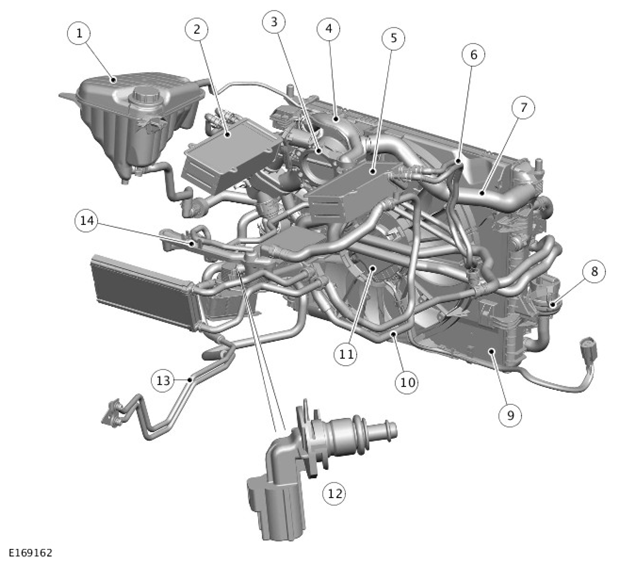

Component Location - Sheet 2 Of 4 - Rear View
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant expansion tank |
| 2 | Charge air cooler - Left |
| 3 | Throttle body |
| 4 | Coolant supply tube |
| 5 | Charge air cooler - Right |
| 6 | Charge air cooler coolant hoses - Right |
| 7 | Upper hose |
| 8 | Charge air coolant pump |
| 9 | Shroud |
| 10 | Heater core return hose |
| 11 | Electric cooling fan |
| 12 | Engine Coolant Temperature (ECT) sensor 1 |
| 13 | Automatic Transmission Fluid (ATF) hoses |
| 14 | Heater manifold |
