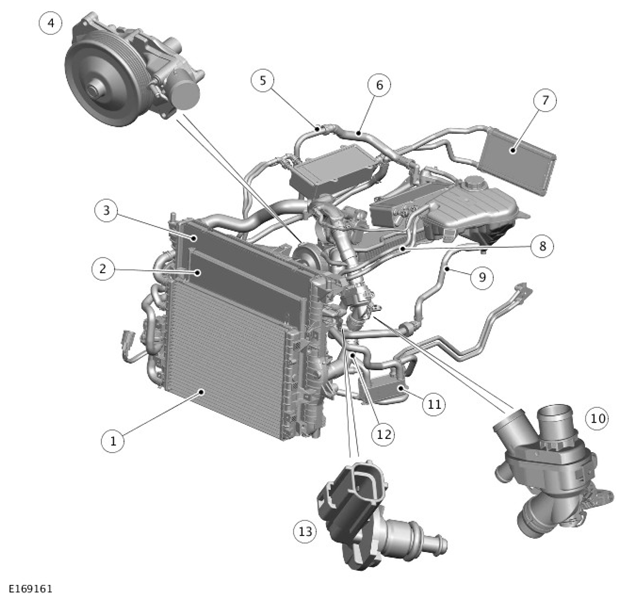

Component Location - Sheet 1 Of 4 - Front View
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Charge air radiator |
| 2 | Air Conditioning (A/C) condensor (Reference only) |
| 3 | Radiator |
| 4 | Coolant pump |
| 5 | Bleed screw |
| 6 | Heater core supply hose |
| 7 | Heater core |
| 8 | Charge air cooler coolant hoses - Left |
| 9 | Coolant expansion hose |
| 10 | Electric thermostat |
| 11 | Automatic Transmission Fluid (ATF) cooler |
| 12 | Lower hose |
| 13 | Engine Coolant Temperature (ECT) sensor 2 |
