Fuel Tank Filler Pipe (G1086688): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (Description and Operation).

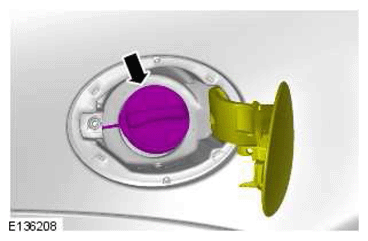

  2. G11424214

    Open the fuel filler door and remove the cap.

  3. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  4. Disconnect the battery ground cable.

    Refer to Battery Disconnect and Connect (General Procedures).

  5. Remove the right-hand wheel and tire.

    Refer to Wheel and Tire (Removal and Installation).

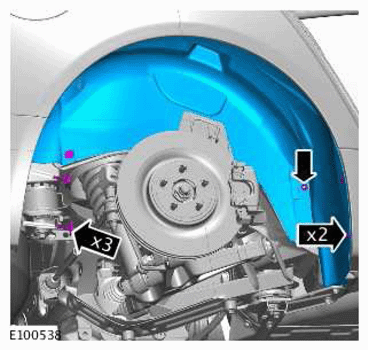

  6. G11424215

    Remove the right-hand wheel arch liner.

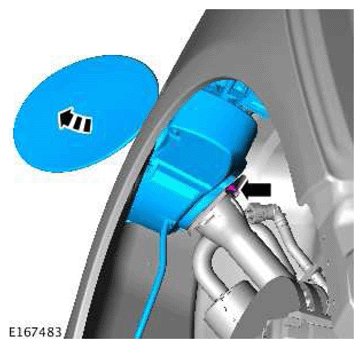

  7. G11424216
  8. NOTE: If equipped.

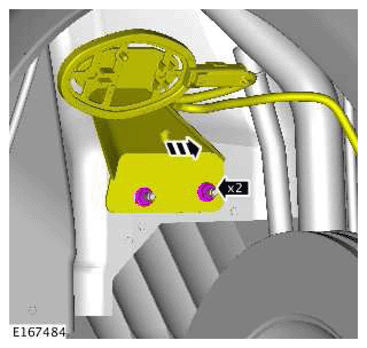

    G11424217

    Torque Specification: 9 Nm

  9. Refer to REAR MUFFLER (G1569059) (Removal and Installation).
  10. WARNING: The fuel tank filler inlet is fitted with a non return valve. When removing the flexible filler hose a small amount of fuel will escape, if this is more than 0.5L refit the filler pipe and drain the fuel tank using suitable equipment.
    NOTE: This step is for information only.

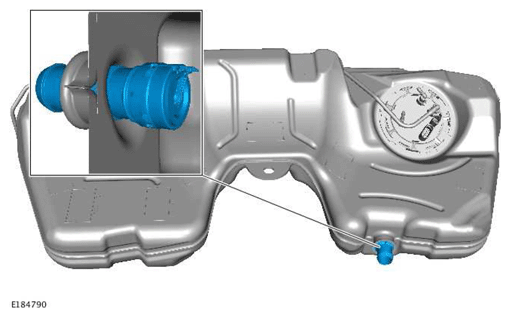

    G11424218

    If required:

    Refer to Fuel Tank Draining - GTDi 2.0L (General Procedures).

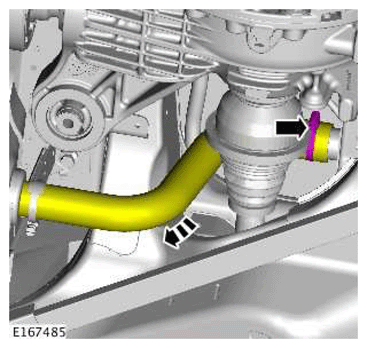

  11. G11424219

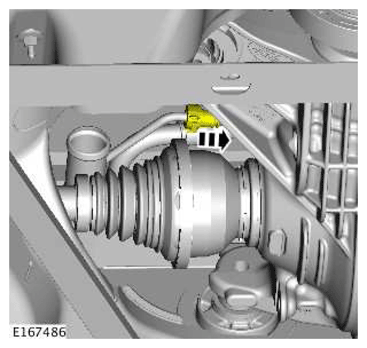

  12. G11424220
  13. NOTE: If equipped.

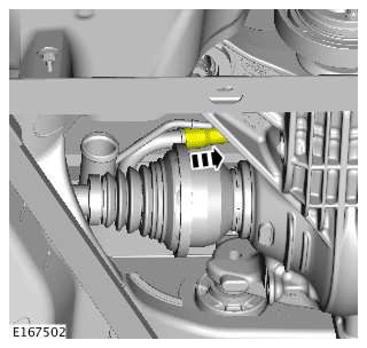

    G11424221

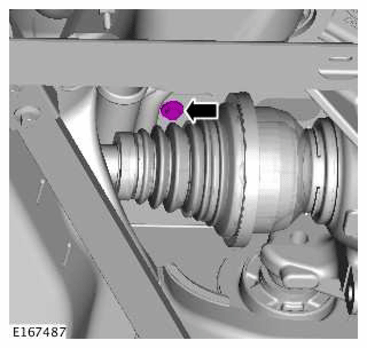

  14. G11424222

    Torque Specification: 9 Nm

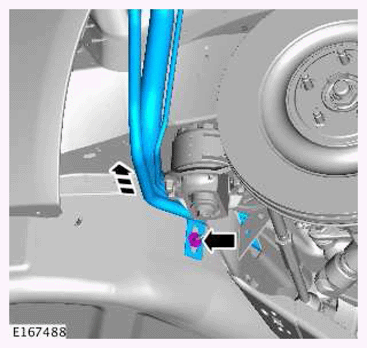

  15. G11424223

    Torque Specification: Bolt: 9 Nm
