Fuel Tank (G1347784): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Fuel may still be present in the fuel tank after draining.
  • Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
  • Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
  • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
  • The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
  • Be prepared to collect escaping fuel.
CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Disconnect the battery ground cable.

    Refer to Battery Disconnect and Connect (General Procedures).

  3. Refer to Rear Seat Cushion (Removal and Installation).
  4. Refer to Fuel Tank Draining - GTDi 2.0L Petrol (General Procedures).
  5. Refer to DRIVESHAFT - GTDI 2.0L PETROL/V6 S/C 3.0 L PETROL/V8 S/C 5.0L PETROL (G1447993) (Removal and Installation).

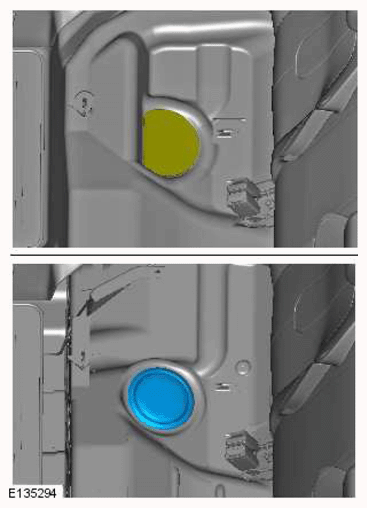

  6. G11424197

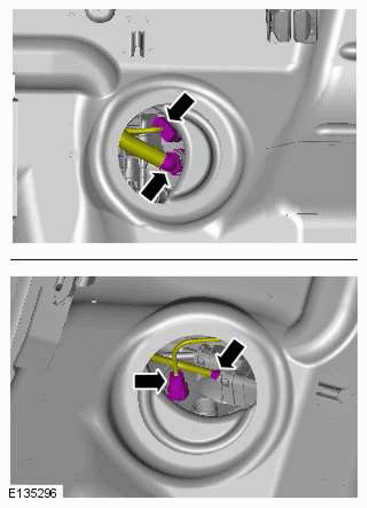

  7. G11424198

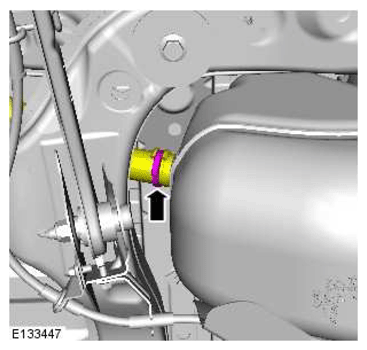

  8. G11424199

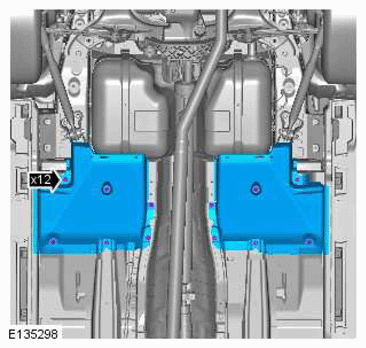

  9. G11424200

    Torque Specification: 5 Nm

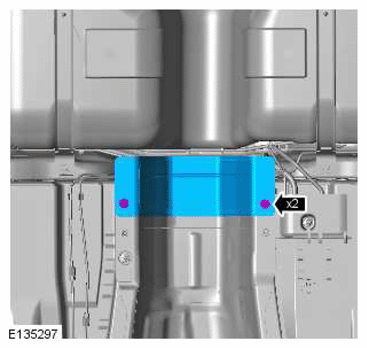

  10. G11424201

    Torque Specification: 24 Nm

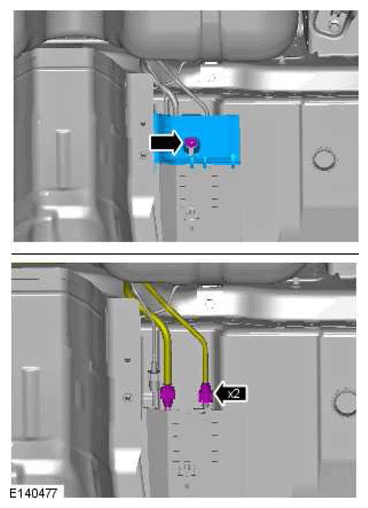

  11. G11424202

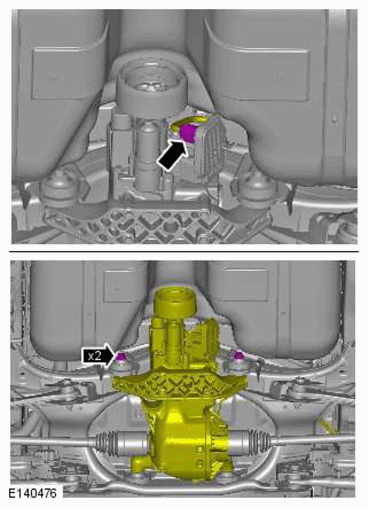

  12. G11424203

    General Equipment:  Transmission jack

    Torque Specification: 110 Nm

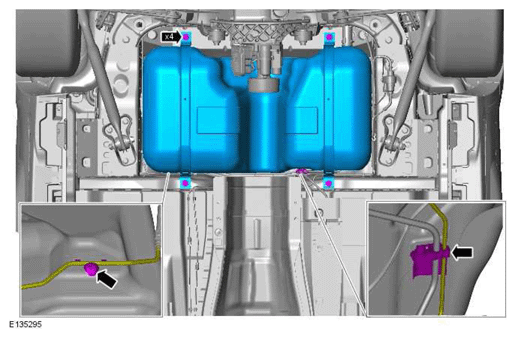

  13. G11424204
  14. CAUTION: Be prepared to collect escaping fuel.

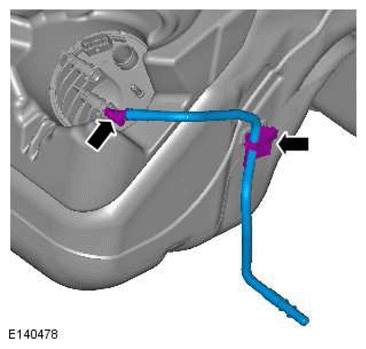

    G11424205

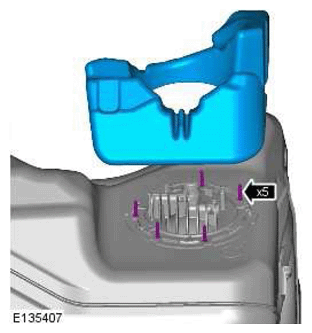

  15. G11424206
  16. CAUTION:
    • Extreme cleanliness must be exercised when handling these components.
    • Make sure the seal is correctly positioned.

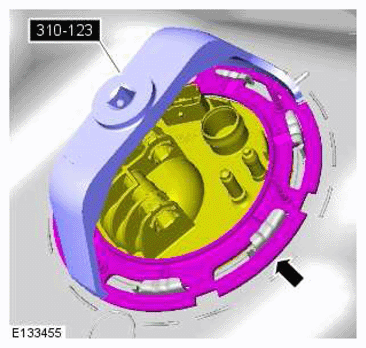

    G11424207

    Special Tool(s):  310-123

  17. CAUTION: Be prepared to collect escaping fuel.

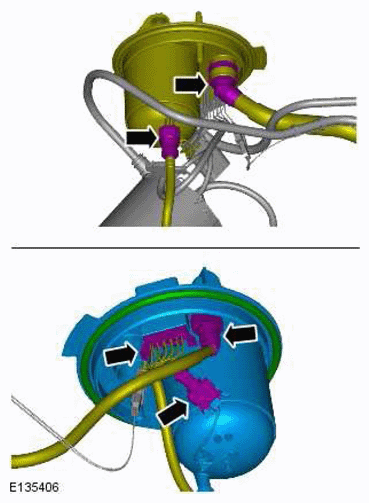

    G11424208
  18. CAUTION: Be prepared to collect escaping fuel.

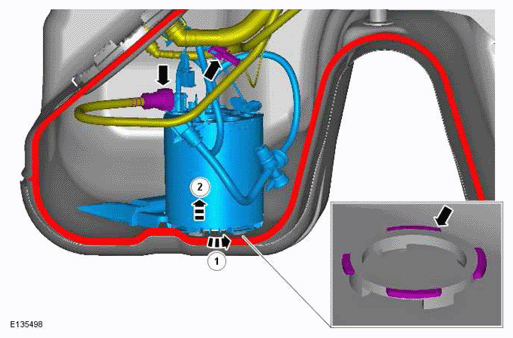

    G11424209

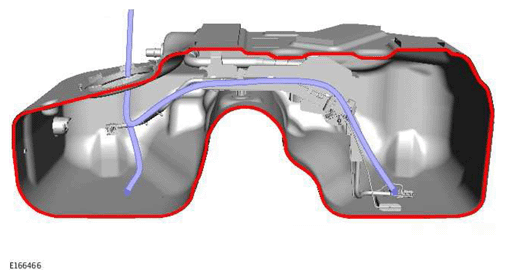

  19. G11424210

    Recover the remaining fuel.

  20. CAUTION: Be prepared to collect escaping fuel.

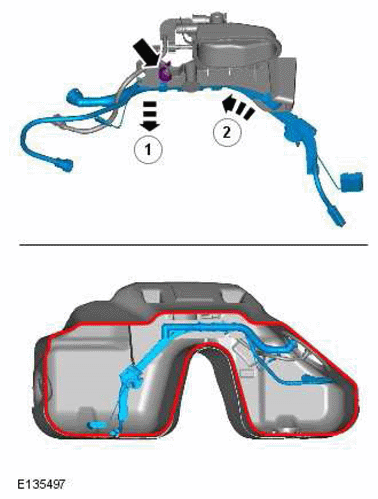

    G11424211
