Component Location - Row
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

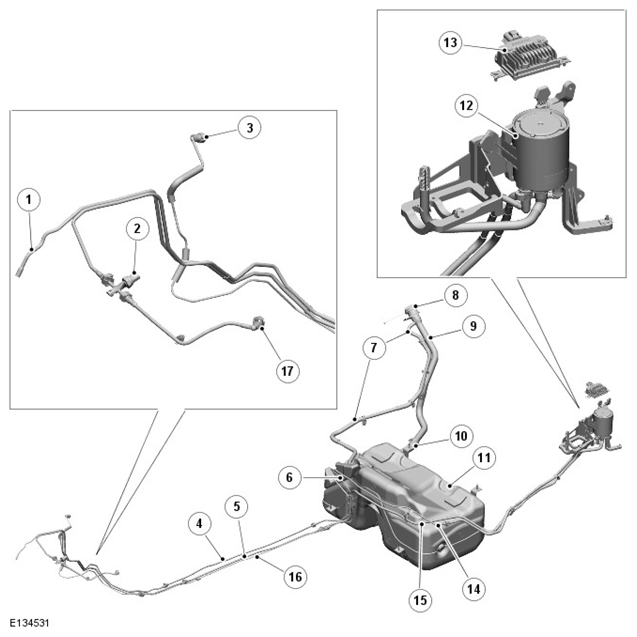

| ITEM | DESCRIPTION |
|---|---|
| 1 | Connection to purge valve |
| 2 | Fuel Low Pressure (LP) sensor |
| 3 | Fuel fired booster heater - fuel supply pipe connection (if fitted) |
| 4 | LP fuel supply pipe |
| 5 | Fuel fired booster heater - fuel supply pipe (if fitted) |
| 6 | Fuel pump delivery module |
| 7 | Fuel tank breather pipe |
| 8 | Fuel filler cap |
| 9 | Fuel tank filler pipe |
| 10 | Fuel tank inlet hose and check valve |
| 11 | Fuel tank |
| 12 | Charcoal canister (reference only) |
| 13 | Fuel Pump Driver Module (FPDM) |
| 14 | Fuel tank vent breather pipe to charcoal canister |
| 15 | Fuel vapor pipe from charcoal canister to purge valve |
| 16 | Fuel vapor pipe to purge valve |
| 17 | LP fuel supply connection to High Pressure (HP) pump |
