Component Location

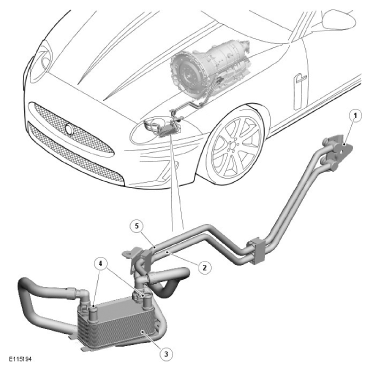

G11512556
ITEM DESCRIPTION
1 Latch-plate
2 Feed hose and pipe (from transmission)
3 Transmission fluid cooler
4 Engine coolant hose connections
5 Return hose and pipe (to transmission)
