Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Floor Console - 5.0L (Removal and Installation).

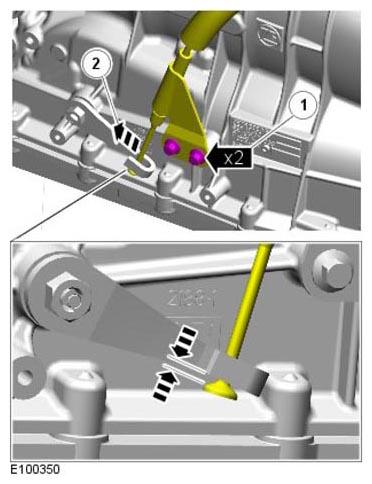

  4. G11292414

    Torque specification: 11 Nm

  5. G11512602

    torque specification: 25 Nm

  6. G11512603

    torque specification: 10 Nm

  7. CAUTION: Make sure that the cable is correctly routed.
    NOTE: Note the routing of the emergency park brake release cable.
    G11512604
  8. G11512605
  9. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

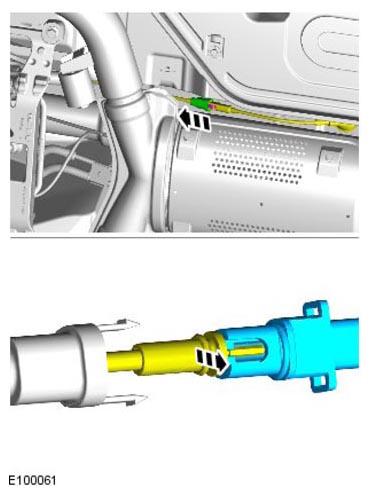

    G11292416
  10. G11512607

    torque specification: 6 Nm
