Description And Operation: Camber: Caster

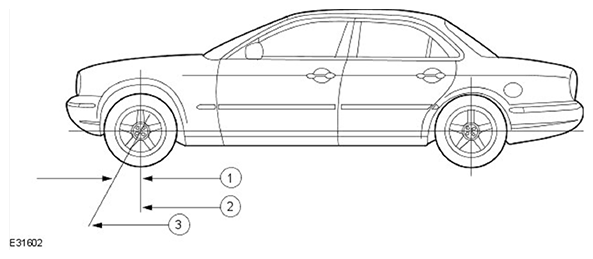

Caster is the deviation from vertical of an imaginary line drawn through the ball joints when viewed from the side. The caster specifications in this service information will give the vehicle the best directional stability characteristics when loaded and driven. The caster setting is not related to tire wear.
