Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use only a plastic scraper when removing the sealing material.

Apply RTV sealant (Loctite 5901G) to the areas shown.

CAUTION: Make sure that a new component is installed.

NOTE: Tighten the retaining bolts in the indicated sequence.

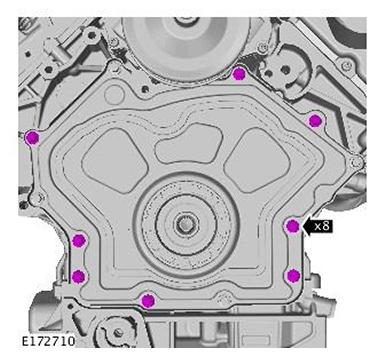

Fig 1: Lower Timing Cover Bolts Tightening Sequence

G11285472

Courtesy of OF JAGUAR

Tighten the lower timing cover bolts within 7 minutes.

Torque Specification: 12 Nm
Tighten the lower timing cover bolts within 7 minutes.

Torque Specification: 12 Nm

NOTE: Lubricate the O-ring seal with clean engine oil.

Torque Specification: 12 Nm

CAUTION:

Use only a plastic scraper when removing the sealing material.

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.

CAUTION: Take extra care not to damage the seal when installing the component.

NOTE: Tighten the retaining bolts in the indicated sequence.

Fig 2: Timing Cover Retaining Bolts Tightening Sequence

G11416296

Courtesy of OF JAGUAR

Fig 3: Timing Cover Retaining Bolts Tightening Sequence

G11416296

Courtesy of OF JAGUAR

Torque Specification: 12 Nm

Torque Specification: 12 Nm
Torque Specification: 10 Nm

CAUTION: Using a suitable tool, lock the component.

Torque Specification: 25 Nm

CAUTION:

Use only a plastic scraper when removing the sealing material.

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.

CAUTION: Take extra care not to damage the seal when installing the component.

NOTE: Tighten the retaining bolts in the indicated sequence.

Fig 4: Timing Cover Retaining Bolts Tightening Sequence

G11416303

Courtesy of OF JAGUAR

Torque Specification: 12 Nm

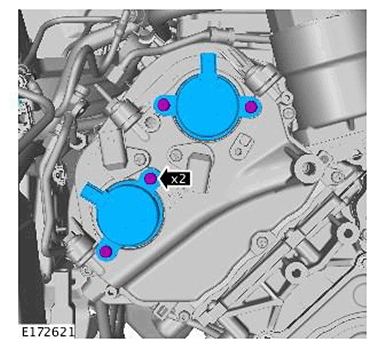

Torque Specification: 10 Nm

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

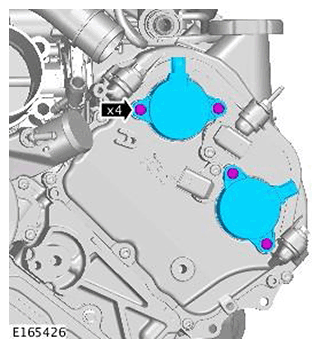

Torque Specification: 10 Nm

CAUTION:

Lubricate only the union threads with clean engine oil.
Only tighten the bolts finger-tight at this stage.

NOTE: Remove and discard the blanking caps.

Torque Specifications:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm
Torque Specification: 48 Nm
Torque Specification: 12 Nm
Torque Specification: 25 Nm
Refer to: Air Deflector

CAUTION: Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

Install the RH front wheel and tire.

Torque Specification: 112 Nm
Install the FEAD belt.

Torque Specification: 25 Nm
Torque Specification: 48 Nm
Torque Specification: 48 Nm
Refer to: Crankshaft Pulley

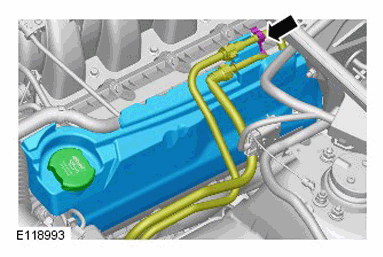

NOTE: Remove and discard the blanking caps.

Torque Specification:

Unions 21 Nm

M5 nut 6 Nm

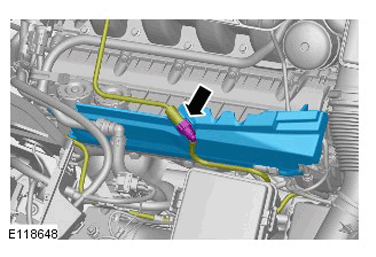

CAUTION:

Remove and discard the blanking caps.
Only tighten the bolts finger-tight at this stage.
This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

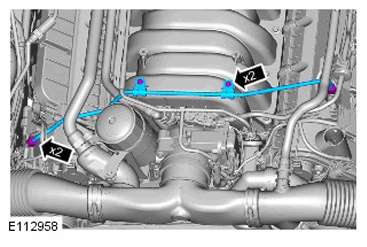

Torque Specification:

Unions 21 Nm

Bolts 8 Nm
Refer to: Air Cleaner Outlet Pipe T-Connector
Refer to: Cooling System Partial Draining and Vacuum Filling
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect
