Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11069547

    Torque Specification: 45 Nm

    2. NOTE: Install a new gasket.
  2. G11285061

    Install the special tool.

    3. NOTE: If a new cylinder head is installed use the special tools in the illustration.
    NOTE: Install the special tool.
  3. G11285062
    4. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
  4. G11285063

    Torque Specification: 10 Nm

  5. G11285064

    Remove the special tool.

    6. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.

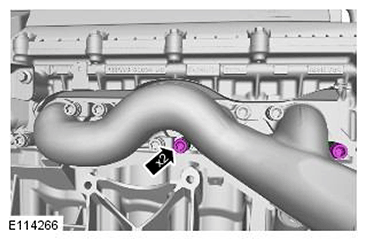

  6. G11540699

    Torque Specification: 10 Nm

  7. Torque Specification: 18 Nm
    Fig 1: Exhaust Manifold Bolt Tightening Sequence
    G11285066Courtesy of OF JAGUAR
  8. G11508024
  9. G11299589

    Torque Specification: 12 Nm

  10. G11293775

    Torque Specification: 48 Nm

    11. CAUTION: Discard the bolt.
  11. G11512231

    Torque Specification: 35 Nm

  12. G11512234

    Torque Specification: 100 Nm

  14. Refer to: Catalytic Converter RH
  15. Refer to: Battery Disconnect and Connect
