Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Raise and support the vehicle.
  3. Refer to: intake Manifold
  4. Refer to: right Camshaft
  5. Refer to: Exhaust Manifold
  6. G11285014

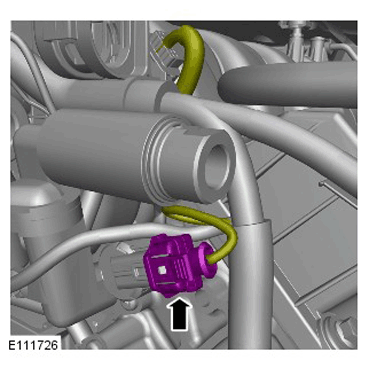

  7. G11284988
    8. CAUTION:
    • Discard the seal.
    • LH illustration shown, RH is similar.
    NOTE: Engine shown removed for clarity.
  8. G11284953
  9. G11284955
  10. G11284991
    11. NOTE: Clamp the hose to minimize coolant loss.
  11. G11284956
    12. NOTE: Clamp the hose to minimize coolant loss.
  12. G11284957
  13. G11284958
    14. CAUTION: Discard the seals.
  14. G11284960
  15. G11284996
    16. NOTE: Remove and discard the O-ring seal.
  16. G11284997
    17. NOTE: Discard the gasket.
  17. G11284998
  18. G11284999
    19. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
  19. G11284963
    20. CAUTION: Discard the bolts.
    Fig 1: Cylinder Head Bolt Tightening Sequence
    G11285005Courtesy of OF JAGUAR
  20. NOTE: Discard the gasket.
  21. G11285002
