Connecting Rod and Piston Orientation
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

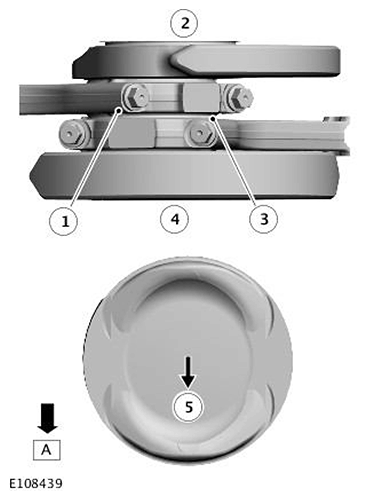

| ITEM | DESCRIPTION |
|---|---|
| A | Front of engine |
| 1 | Alignment mark |
| 2 | LH side (bank B) |
| 3 | Alignment mark |
| 4 | RH side (bank A) |
| 5 | Piston orientation arrow |
The orientation of the connecting rods and pistons on the crankshaft are given below:
- Bank A - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the rear of the engine.
- Bank B - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the front of the engine.
