Removal And Installation: Installation
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
Check cylinder head face for distortion, across the center and from corner to corner.
- The head gasket must be installed over the cylinder block dowels.
- Make sure that the mating faces are clean and free of foreign material.
-
Torque Specification: 20 Nm
-
Torque Specification: 35 Nm
-
Tighten the bolts 1 to 10, a further 90 degrees.
-
Tighten the bolts 1 to 10, a further 120 degrees.
Torque Specification: 25 Nm
-
Torque Specification: 12 Nm

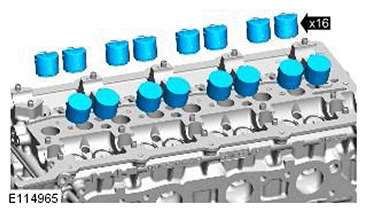

- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Lubricate the valve tappets with clean engine oil.

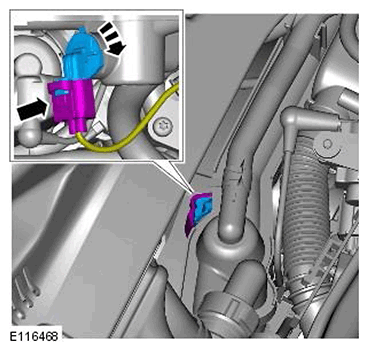

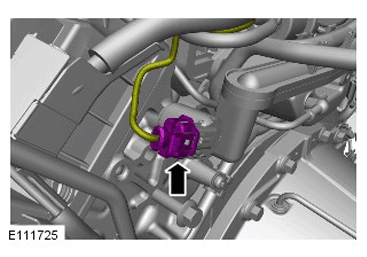

Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 10 Nm
Torque Specification: 12 Nm
Torque Specification: 12 Nm
Torque Specification: 20 Nm
Torque Specification: 20 Nm
Torque Specification: 12 Nm
- Refer to: exhaust Manifold Removal And Installation
- Refer to: left Camshaft Removal And Installation
- Refer to: intake Manifold
-
Refer to: Battery Disconnect and Connect
CAUTION:
An acceptable flatness of the cylinder head is 0.1mm.
WARNING:
Make sure care is taken when handling the cylinder head gasket.
CAUTION:
NOTE:
Install a new cylinder head gasket.
CAUTION:

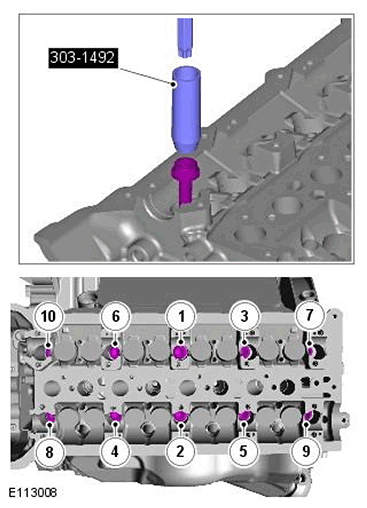

Make sure that new cylinder head bolts are installed.
NOTE:
Tighten the bolts in the indicated sequence.
NOTE:
Tighten the bolts in the indicated sequence.
NOTE:
Tighten the bolts in the indicated sequence.
NOTE:
Tighten the bolts in the indicated sequence.
NOTE:
Tighten the bolts in the indicated sequence.
CAUTION:
CAUTION:

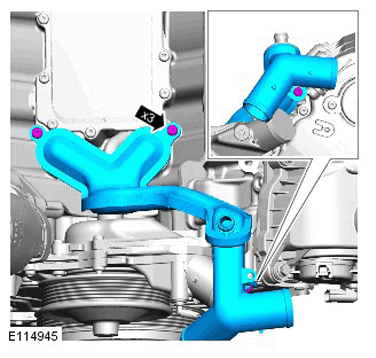

Install the new seals.
NOTE:
Engine shown removed for clarity.
CAUTION:
Install new o-ring seals
