Removal And Installation: Installation
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
Install new O-ring seals.
Install new Teflon seals.
Special Tool(s): 310-198
Special Tool(s): 310-199
Special Tool(s): 310-200-01, 310-200-02
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
- When Installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
- If new fuel injectors are installed, a new injector clamp must be installed
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
- Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
Torque Specification: 20 Nm
Special Tool(s): 310-200-01, 310-200-02
Torque Specification: 20 Nm
-
NOTE: Tighten in the sequence indicated.
Torque Specifications:
Bolt 2 30 Nm
Bolt 3 30 Nm
Bolt 1 30 Nm
Bolt 4 30 Nm
-
NOTE: RH shown LH similar.

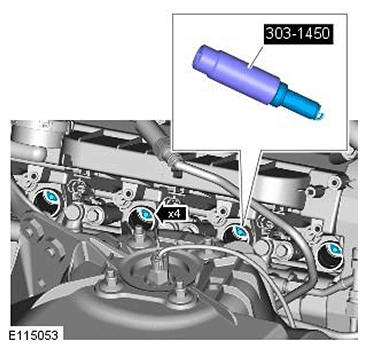

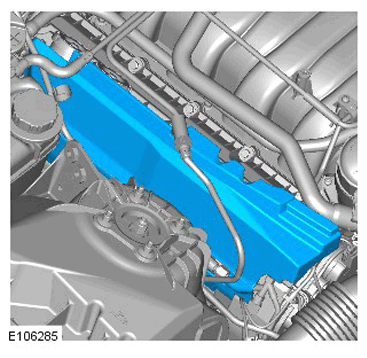

Special Tool(s): 303-1450
Torque Specification: 20 Nm
Torque Specification: 7 Nm
- Engine shown removed for clarity.
- Install the bolt and unions finger tight before final tightening.
- Remove and discard the blanking caps.
- Lower the vehicle.
- Do not tighten at this stage.
- Remove and discard the blanking caps.
-
Raise and support the vehicle.
Torque Specifications:
Unions (1) 21 Nm
M6 (2) 11 Nm
M8 (3) 25 Nm
M5 nut (4) 6 Nm
Torque Specification: 21 Nm
Torque Specifications:
M10 29 Nm
M6 11 Nm
- Lower the vehicle.
- Lubricate the union threads with clean engine oil.
- Do not tighten at this stage.
- Remove and discard the blanking caps.

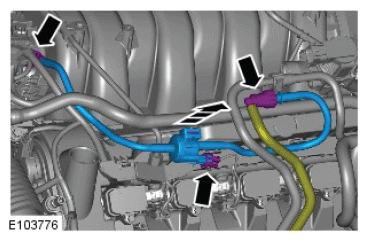

Torque Specifications:
Unions 21 Nm
Bolts 8 Nm
Torque Specification: 21 Nm

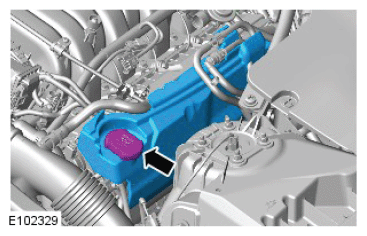

- Refer to: Air Cleaner Outlet Intermediate Pipe RH

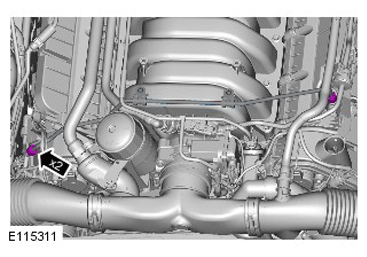

Torque Specification: 45 Nm
Torque Specification: 45 Nm
- Refer to: Cowl Vent Screen
- Refer to: Battery Disconnect and Connect
CAUTION:
If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
CAUTION:
If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
CAUTION:
CAUTION:
NOTE:
Lubricate the fuel injector O-ring seals with clean engine oil.
CAUTION:
Lubricate only
the union threads with clean engine oil.
NOTE:
NOTE:
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
NOTE:
Engine shown removed for clarity.
NOTE:
Engine shown removed for clarity.
NOTE:
Engine shown removed for clarity.
NOTE:
Engine shown removed for clarity.
NOTE:
