Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions
  3. Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol
  4. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol
  5. Refer to: Fuel Injection Component Cleaning
  6. G11285397
  7. G11288120
  8. Refer to: Air Cleaner Outlet Intermediate Pipe RH
    9. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
  9. G11288121
  10. G11288122
    11. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
  11. G11285153
    12. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  12. Raise and support the vehicle.

  13. Refer to: Engine Mount RH

  14. Refer to: Generator

    15. NOTE: Engine shown removed for clarity.
  15. G11288124
    16. NOTE: Engine shown removed for clarity.
  16. G11285201
    17. NOTE: Engine shown removed for clarity.
  17. G11288126
    18. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
  18. G11288127
    19. CAUTION:
    • Remove and discard the high-pressure fuel supply lines.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Engine shown removed for clarity.
  19. G11285157

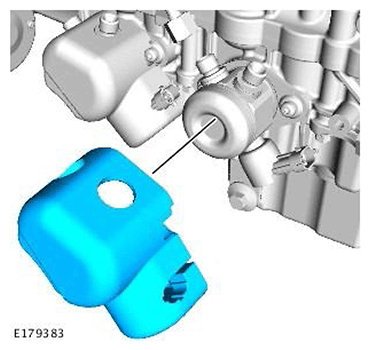

  20. G11541836
    21. CAUTION: Be prepared to collect escaping fluids.

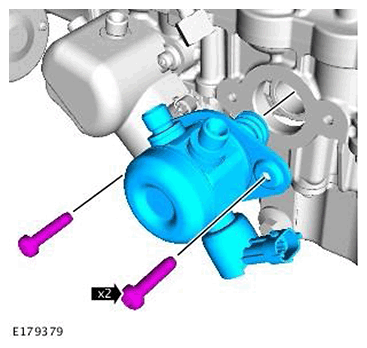

  21. G11541837

    Loosen the Torx screws a turn each at a time.

    22. CAUTION: Be prepared to collect escaping fluids.
  22. G11288160
