Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

Install the high-pressure fuel pump.

Torque Specification: 12 Nm
Loosen the Torx screws half a turn each.

CAUTION:

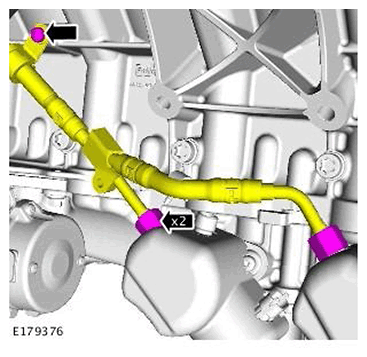

Install new high-pressure fuel supply lines.
Lubricate the high-pressure fuel supply line unions with clean engine oil.

NOTE:

Engine shown removed for clarity.
Remove and discard the blanking caps.

Install the high-pressure fuel supply lines, tighten the bolts and unions finger tight at stage.

CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

Tighten the Torx screws.

Torque Specification: 12 Nm
Lower the vehicle.

NOTE: Engine shown removed for clarity.

Torque Specifications:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm

M5 nut (4) 6 Nm

NOTE: Remove and discard the blanking caps.

Torque Specifications:

Unions 21 Nm

Bolt 12 Nm

NOTE: Install the bolt and unions finger tight before final tightening.

Torque Specifications:

Unions 21 Nm

M6 11 Nm

NOTE: Engine shown removed for clarity.

Torque Specifications:

M10 29 Nm

M6 11 Nm
Torque Specification: 25 Nm
Refer to: Generator
Refer to: Engine Mount RH

NOTE:

Do not tighten at this stage.
Lubricate the union threads with clean engine oil.
Remove and discard the blanking caps.

Torque Specifications:

Unions 21 Nm

Bolts 8 Nm
Refer to: Battery Disconnect and Connect
Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol
