Fuel Rails And Crossover Tube
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

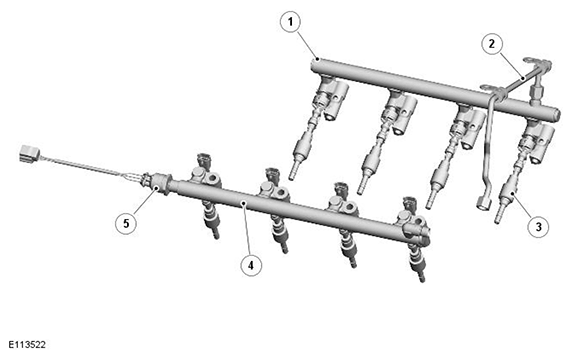

| ITEM | DESCRIPTION |
|---|---|
| 1 | LH fuel rail |
| 2 | Crossover tube |
| 3 | Fuel injector |
| 4 | RH fuel rail |
| 5 | FRP sensor |
The fuel rails and crossover tube are made from stainless steel. Bolts attach each fuel rail to the related cylinder head. The crossover tube connects the front high pressure line to the LH fuel rail, which ensures there is equal pressure in the two fuel rails. Two P-clips attach the crossover tube to the intake manifold.
The rear of the RH fuel rail incorporates a threaded boss for installation of the FRP sensor.
