Control Diagram

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

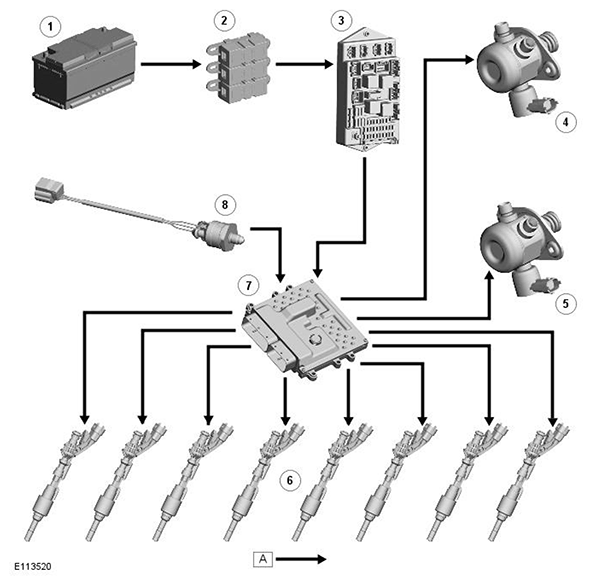

ITEM	DESCRIPTION
1	Battery
2	BJB (battery junction box) (175 A megafuse)
3	CJB (central junction box)
4	No. 1 HP fuel pump
5	No. 2 HP fuel pump
6	Fuel injectors
7	ECM
8	FRP sensor
