Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Vehicles with supercharger

    Refer to: Vehicles With Supercharger - THERMOSTAT HOUSING - V8 S/C 5.0L PETROL (Removal and Installation).

  4. Vehicles without supercharger

    Refer to: THERMOSTAT HOUSING - V8 N/A 5.0L PETROL (Removal and Installation).

  5. All vehicles

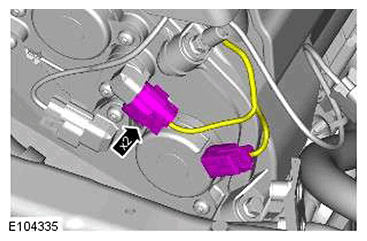

    G11542258
  6. G11293332

    Torque Specification: 10 Nm
