Component Location - Sheet 2 Of 3

WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

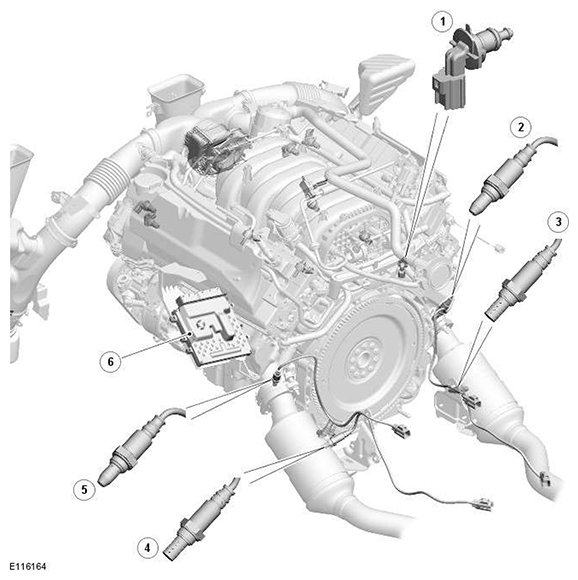

G11542188
ITEM DESCRIPTION
1 ECT sensor (ECT 1)
2 Upstream HO2S (heated oxygen sensor)
3 Downstream HO2S
4 Downstream HO2S
5 Upstream HO2S
6 ECM (engine control module)
