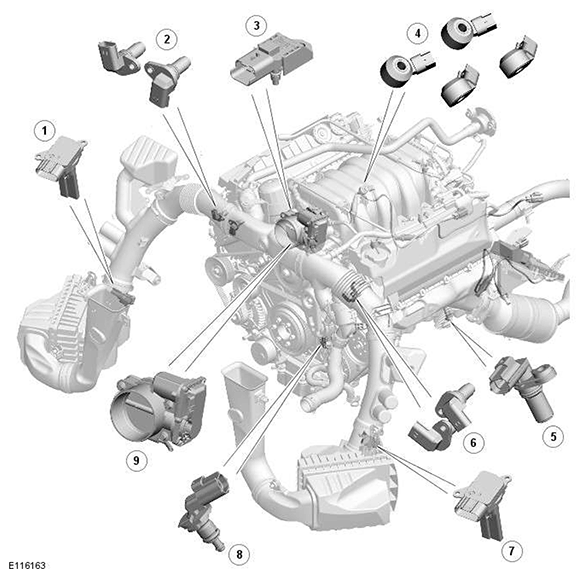

Component Location - Sheet 1 Of 3
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
MAFT (mass air flow and temperature) sensor |
| 2 |
CMP (camshaft position) sensors |
| 3 |
MAP (manifold absolute pressure) sensor |
| 4 |
Knock sensors |
| 5 |
CKP (crankshaft position) sensor |
| 6 |
CMP sensors |
| 7 |
MAFT sensor |
| 8 |
ECT (engine coolant temperature) sensor (ECT 2) |
| 9 |
Electronic throttle |
