Component Location

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

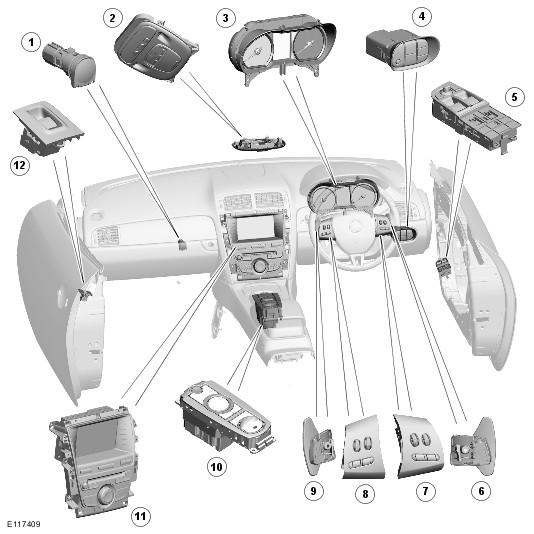

GJ0025729Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Accessory power socket/cigar lighter
2 Overhead console
3 Instrument cluster
4 Dimmer switch
5 Driver door switch pack
6 Upshift paddle switch
7 Steering wheel speed control switches
8 Steering wheel audio switches
9 Downshift paddle switch
10 JaguarDrive selector module
11 Integrated control panel
12 Passenger door switch pack
