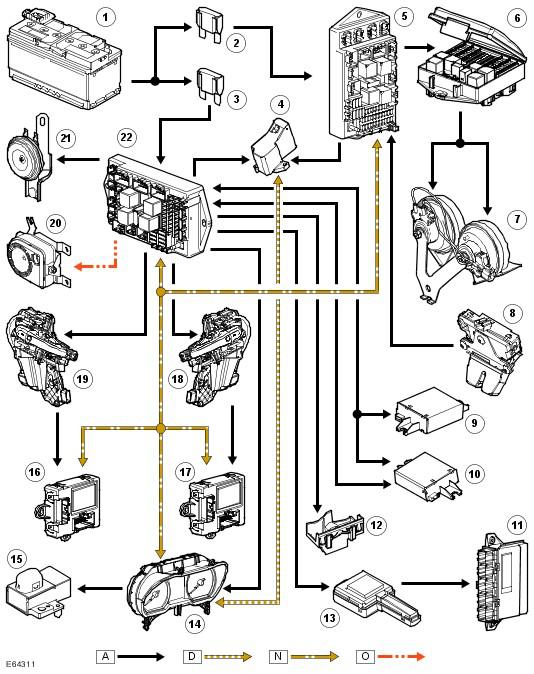

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed controller area network (CAN) bus; N
= Medium speed controller area network (CAN) bus; O
= local interconnect network (LIN) Bus
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | Electric steering column lock (all except NAS (north American specification)) |
| 5 | CJB |
| 6 | Power distribution box |
| 7 | Vehicle horns |
| 8 | Liftgate latch ajar switch |
| 9 | Intrusion detection module |
| 10 | Slave intrusion detection module |
| 11 | Keyless vehicle module |
| 12 | Hood ajar switch |
| 13 | CLS RF receiver |
| 14 | Instrument cluster |
| 15 | Light sensor (security LED) |
| 16 | RH door module |
| 17 | LH door module |
| 18 | LH door latch ajar switch |
| 19 | RH door latch ajar switch |
| 20 | Battery backed sounder (if fitted) or battery backed sounder with tilt sensor (if fitted) |
| 21 | Passive anti-theft alarm horn (if fitted) |
| 22 | AJB |
