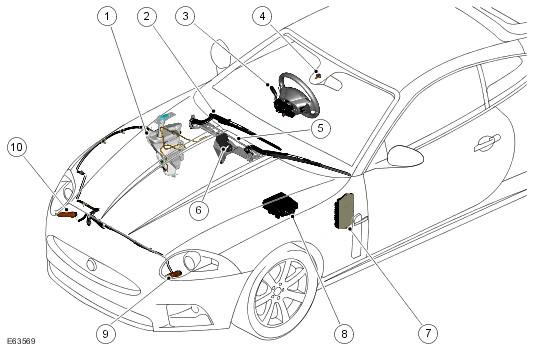

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Washer reservoir |
| 2 |
Wiper arms/blades (2 off) |
| 3 |
Wiper/washer control switch |
| 4 |
Rain sensor |
| 5 |
Wiper arm mounting spindles (2 off) |
| 6 |
Wiper motor |
| 7 |
Central Junction Box (CJB) |
| 8 |
Power distribution box |
| 9 |
RH headlamp power wash jet |
| 10 |
LH headlamp power wash jet |
