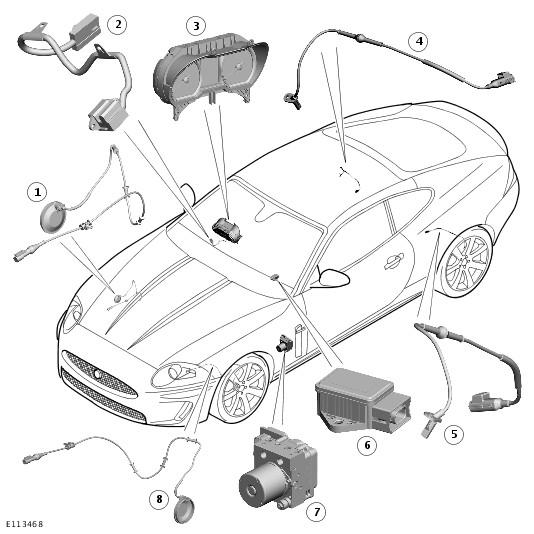

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
RH (right hand) front wheel speed sensor |
| 2 |
Steering angle sensor |
| 3 |
Instrument cluster |
| 4 |
RH rear wheel speed sensor |
| 5 |
LH (left hand) rear wheel speed sensor |
| 6 |
Yaw rate and lateral acceleration sensor |
| 7 |
ABS (anti-lock brake system) module |
| 8 |
LH front wheel speed sensor |
