Brake Warning Indicators
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

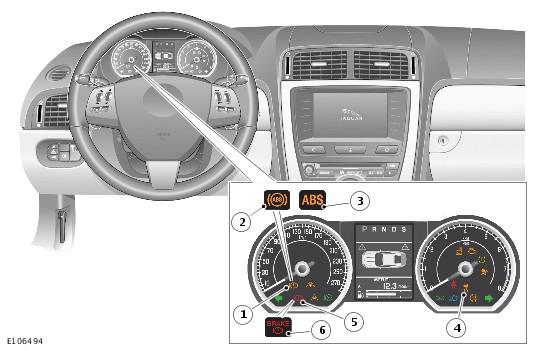

| Item Number | Description |
|---|---|
| 1 | ABS warning indicator (all except USA, Canada and Mexico) - also shared with EPB (electronic parking brake) warning |
| 2 | ABS warning indicator (Canada and Mexico only) - not shared with EPB warning |
| 3 | ABS warning indicator (USA only) - not shared with EPB warning |
| 4 | DSC warning indicator |
| 5 | Brake warning indicator (all except USA) |
| 6 | Brake warning indicator (USA only) |
The instrument cluster and message center contains warning indicators and warning messages to display the operating status of the anti-lock control - stability assist functions. The warning indicators and messages provide a visual notification of either a system warning or information indication to the driver. There are three warning indicators on the instrument cluster, which vary dependent on market, and several types of message relating to the anti-lock control - stability assist functions. The DSC OFF message is accompanied by an audible warning.
The following anti-lock control - stability assist warning indicators are installed in the instrument cluster:
- An amber anti-lock brake system (ABS) warning indicator.
- A red brake warning indicator.
- An amber DSC warning indicator.
