Cylinder Block: Notes

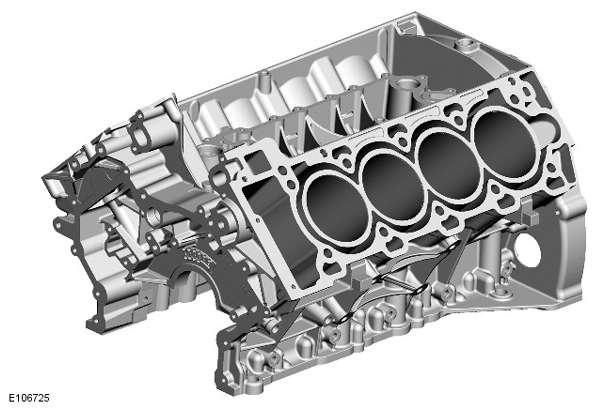

The cylinder block is a 90 degree configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.

The cylinders are numbered as shown below.

ISO cylinder firing order  1, 2, 7, 3, 4, 5, 6, 8
