Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. For additional information, refer to: Wheel and Tire (Removal and Installation).
  3. G11523809
  4. G11523810

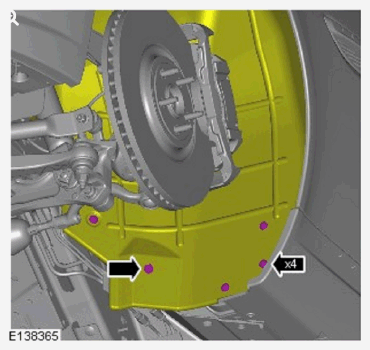

  5. G11523994

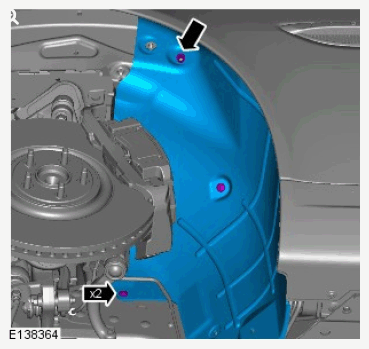

  6. G11523995
