General Procedures

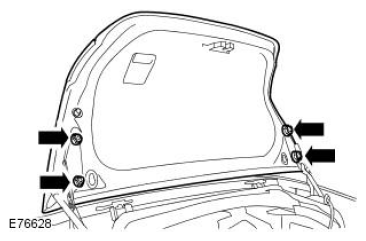

Remove the luggage compartment lid striker panel.

• Remove the 4 Torx screws.

Remove the luggage compartment striker.

• Remove the 2 Torx bolts.

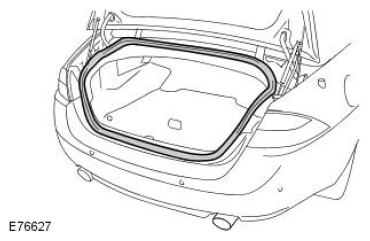

Remove the luggage compartment aperture seal.

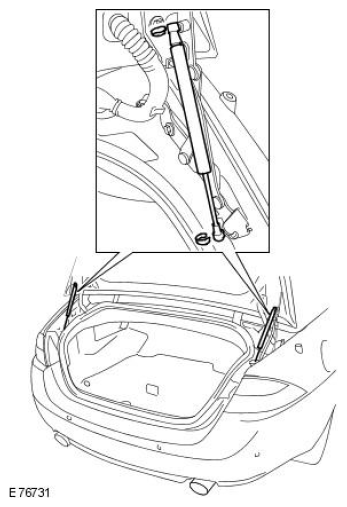

Remove the luggage compartment lid struts.

• Release the 4 clips.

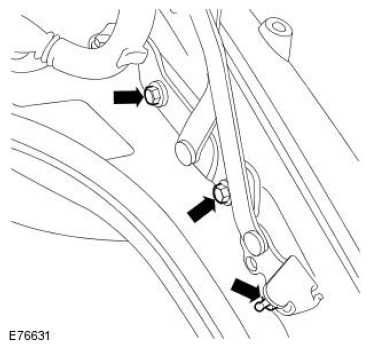

Loosen the luggage compartment lid hinge fixings.

• Loosen but do not remove the 4 nuts.

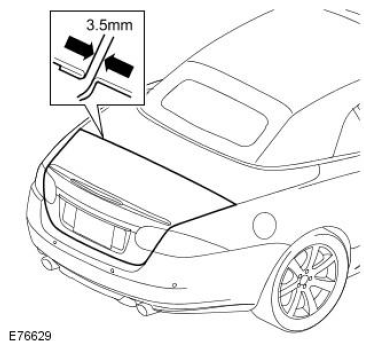

Make sure the gaps between the luggage compartment lid are all 3.5 mm.

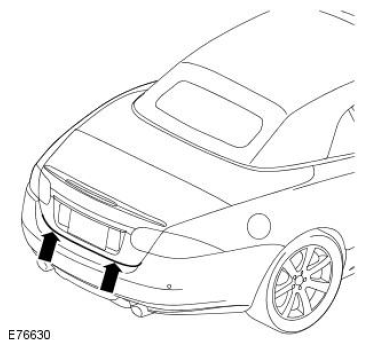

Make sure the luggage compartment lid to rear bumper gap is 6.8 mm.

Tighten the luggage compartment lid hinge nuts to 23 Nm (17 lb.ft).

Loosen the luggage compartment lid hinge to body fixings.

• Loosen the 6 bolts.

• Secure the 4 clips.

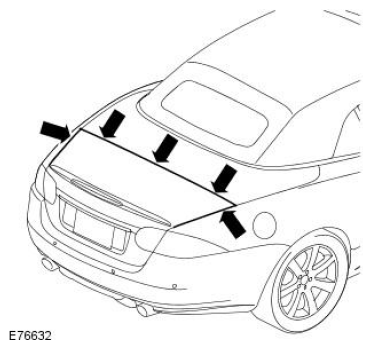

With the luggage compartment lid closed, check the profile of the luggage compartment lid to convertible top compartment lid, and luggage compartment lid to rear body side is flush; adjust as necessary.

• Install the 4 Torx screws
