General Procedures

  1. Check the gap and profiles of the liftgate are correct.

    For additional information, refer to: Body and Frame

  2. Remove the loadspace floor panel.

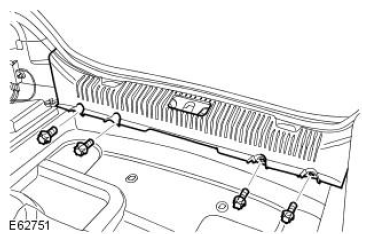

  3. G11524005

    Remove the scuff plate trim panel.

    • Remove the 4 Torx bolts.

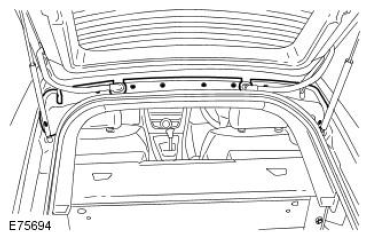

  4. G11524015

    Remove the liftgate hinge cover.

    • Remove the 8 clips.

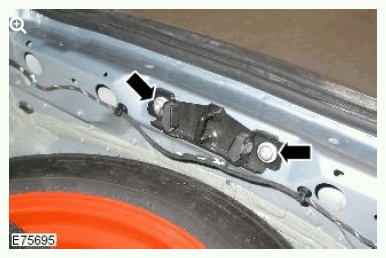

  5. G11524006

    Loosen the liftgate striker.

    • Loosen the 2 Torx bolts.

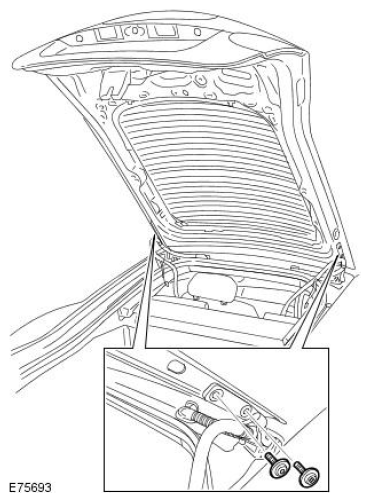

  6. G11524017

    Loosen the liftgate to hinge Torx bolts.

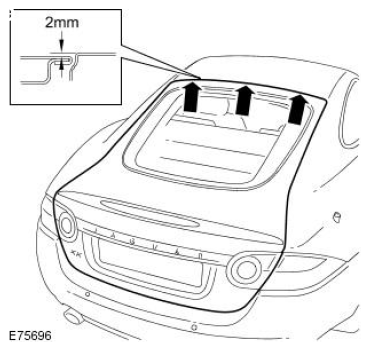

  7. G11524018

    With the liftgate closed, check the alignment of the liftgate to the roof panel. Profile of the liftgate to roof panel should be 2 mm below flush.

  8. Tighten the liftgate to hinge Torx bolts to 25 Nm (18 lb.ft).

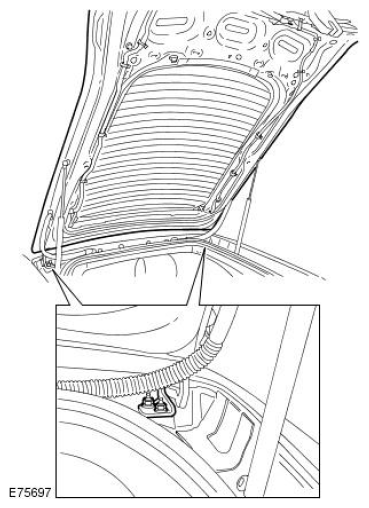

  9. G11524019

    Loosen the liftgate hinge to body nuts.

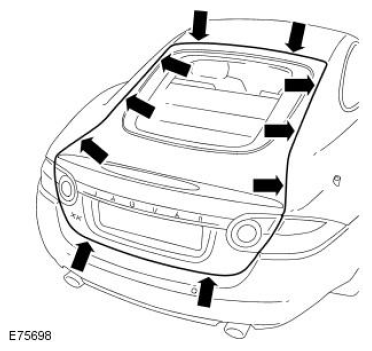

  10. G11524020

    With the liftgate closed, check the alignment of the liftgate to the roof panel and bodyside panel. The liftgate should be central in its aperture.

  11. Tighten the liftgate hinge to body nuts to 25 Nm (18 lb.ft).
  12. Secure the liftgate striker.
    • Tighten the Torx bolts to 25 Nm (18 lb.ft).
  13. Install the scuff plate trim panel.
    • Install the 4 Torx screws

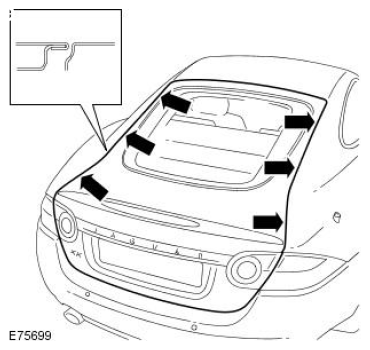

  14. G11524021

    With the liftgate closed, check the profile of the liftgate to the bodyside panel. Adjust as required.

  15. Install the liftgate hinge cover.
    • Secure with the clips.
  16. Install the loadspace floor panel.
