Removal And Installation: Removal

  1. Remove the liftgate lower trim panel.

    For additional information, refer to: Liftgate Lower Trim Panel

  2. Disconnect the rear screen electrical connectors.

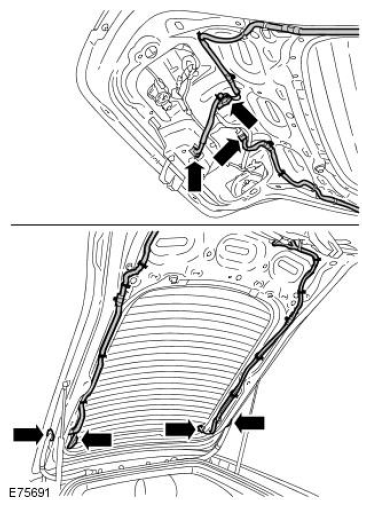

  3. G11524052

    Release the body harness from the liftgate.

    • Release the 15 clips.
    • Disconnect the 5 electrical connectors.
    • Release the 2 harness grommets and withdraw the harness from liftgate.
    4. NOTE: Support the lifgate as necessary.

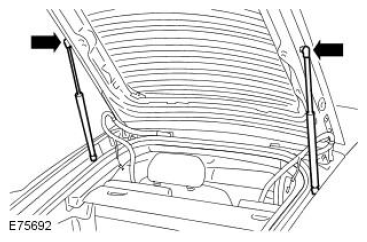

  4. G11524053

    Release the liftgate support struts.

    • Release the 2 clips.
  5. G11524017

    With assistance, remove the liftgate.

    • Remove the 4 Torx bolts.
