Special Tool(S)
| 501-119 Actuator Aligners - Pedestrian Protection Hood Stops |

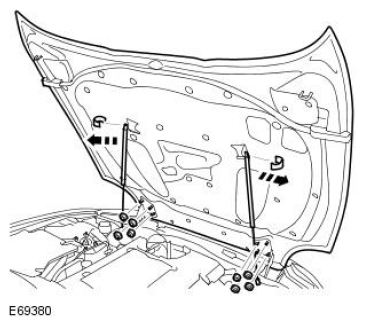

- With assistance, loosen the 8 nuts securing the hood to the hinges.
Release the hood support struts.
- Lower the hood and check for alignment.
For additional information, refer to: Body and Frame
- Adjust as necessary.
- Raise the hood.
- Tighten the nuts to 25 Nm (18 lb.ft). Connect the hood support struts.
Align the hood to the pedestrian protection actuators using special tools 501-119.

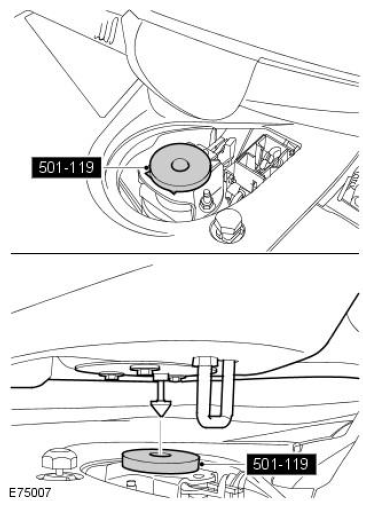

- Insert special tools 501-119, into the pedestrian protection actuators.
- Loosen the 8 bolts securing the pedestrian protection actuator stops to the hood.
- Gently close the hood so that the pedestrian protection hood stops are aligned to the actuators.
- Open the hood.
- Tighten the bolts to 10 Nm (7 lb.ft).
