Removal And Installation: Removal

1. With assistance, remove the hood.

   • Release the clips and disconnect the struts.
   • Remove the 8 nuts.
NOTE: Do not disassemble further if the component is removed for access only.

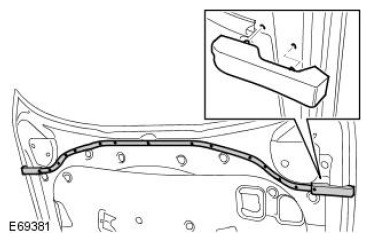

2. Remove the hood seal end caps.

   • Release from the 4 clips.

3. Remove the hood seal.

   • Release the hood seal.
   • Remove the 17 clips.

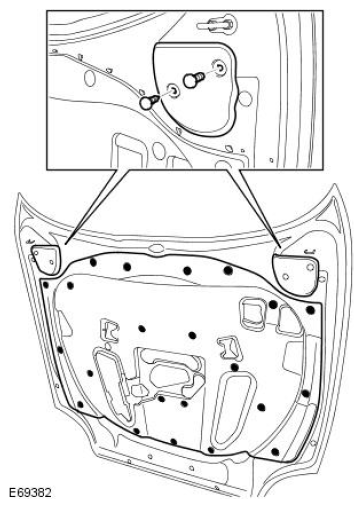

4. Remove the hood pad.

   • Remove the 23 clips.

Remove the 2 secondary hood pads.

• Remove the 4 clips.
