General Procedures: Repair

NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. For additional information on correct wiring harness repair techniques, refer to
  2. Refer to: Battery Disconnect and Connect
  3. Refer to: Fuel Pump and Sender Unit

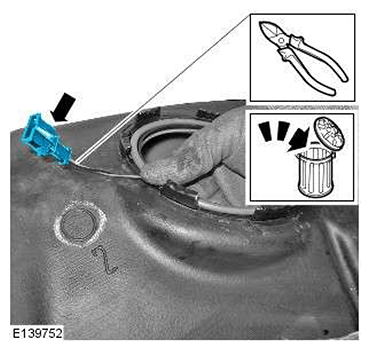

    4. NOTE: Cut the wires as close as possible to the electrical connector.
  4. G11548366

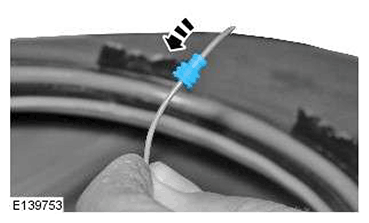

  5. G11548367

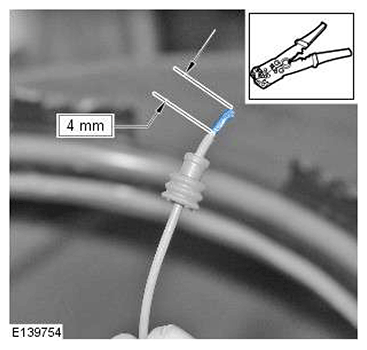

  6. G11548368

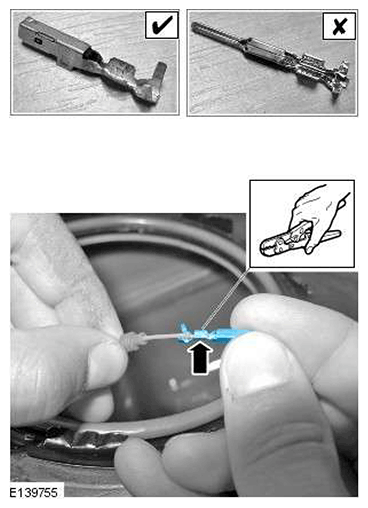

  7. G11548369
    • Install the female terminal to the wire, and using a suitable tool crimp the first stage.

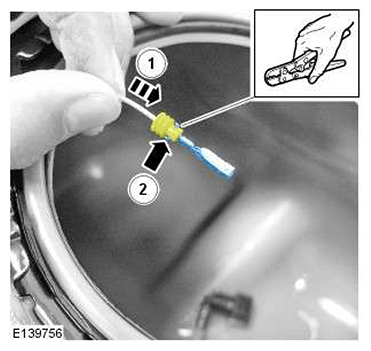

  8. G11548370
    • Install the wiring harness grommet to the terminal, and using a suitable tool, crimp the second stage.
  9. Repeat steps  5 to  8 for the second wire.

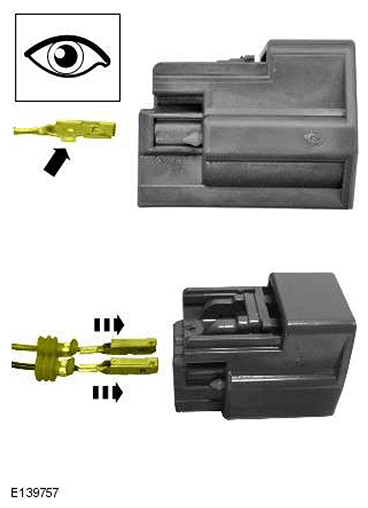

    10. CAUTION: It is essential that the wires are installed in the correct orientation as shown. The lug must be positioned opposite to the connector release clip.
    CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.
  10. G11548371
  11. G11548372
    • Secure the electrical terminals with the anti - backout.

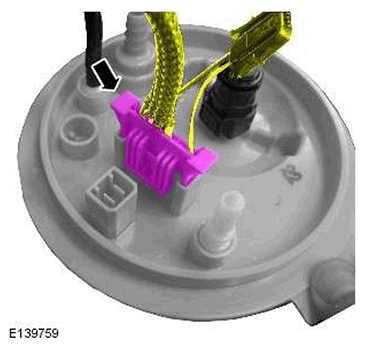

  12. G11548373

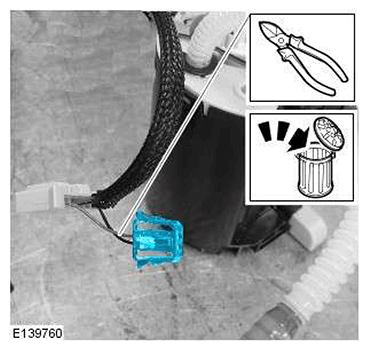

    13. NOTE: Cut the wires as close as possible to the electrical connector.
  13. G11548374

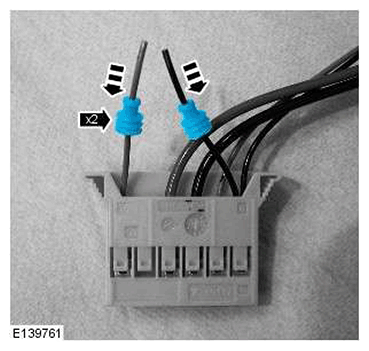

  14. G11548375

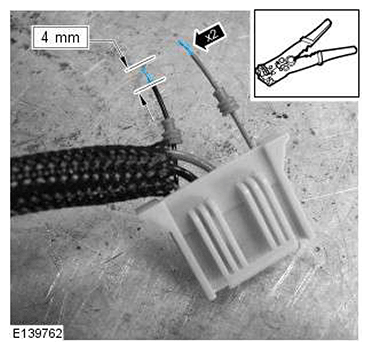

  15. G11548376

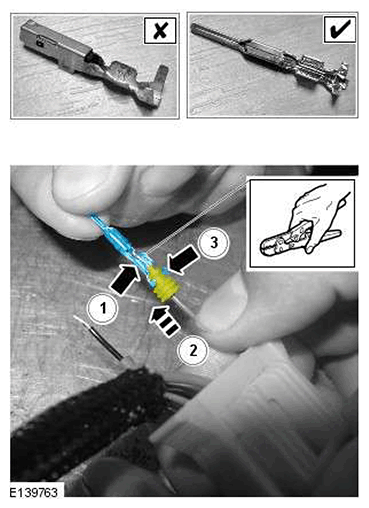

  16. G11548377
    • Following the procedure above for the female terminals, install the two male terminals to the wires.

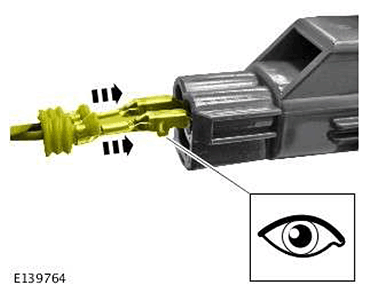

    17. CAUTION:
    • Make sure that the wires are installed to align with the corresponding colored wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation as shown.
  17. G11548378
    18. CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.

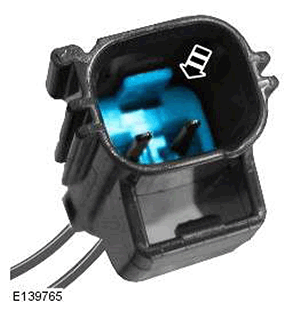

  18. G11548379
    • Secure the electrical terminals with the anti - backout.

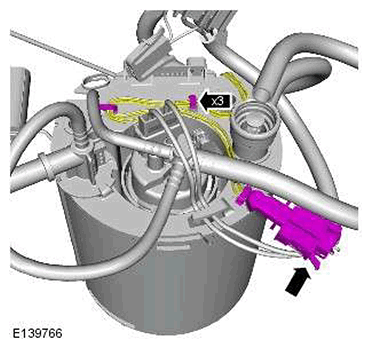

  19. G11548380
    20. CAUTION:
    • The male connector is to be installed on the sender side.
    • Make sure that the wires are installed to align with the corresponding colored wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation to the connectors.
    • Using the procedure outlined above for the passive side sender, remove the wiring connectors from the active side sender and replace with the new connectors from the parts kit.

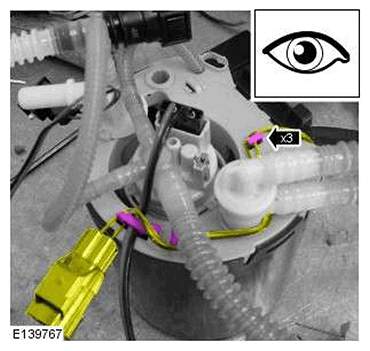

  21. G11548381
    • Re - route the active side sender wires as shown.

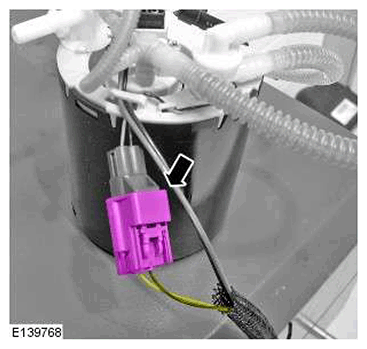

  22. G11548382

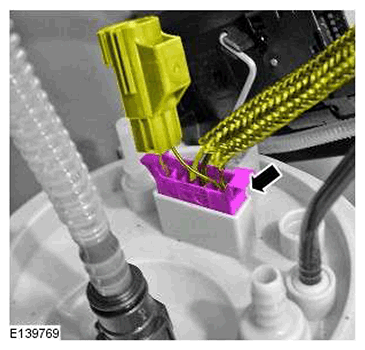

  23. G11548383
  24. Refer to: Fuel Pump and Sender Unit
  25. Refer to: Battery Disconnect and Connect
