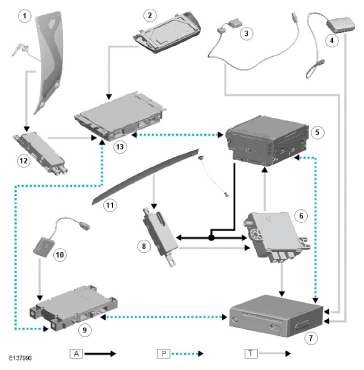

Control Diagram: Coupe
NOTE:
A = Hardwired; P = MOST ring; T = Coaxial cable.
| ITEM | DESCRIPTION |
|---|---|
| 1 | DAB band 3 antenna (market dependent) |
| 2 | DAB L band/SDARS antenna (market dependent) |
| 3 | GPS antenna |
| 4 | VICS beacon antenna (Japan only) |
| 5 | Integrated audio module |
| 6 | FM antenna signal splitter |
| 7 | Navigation computer |
| 8 | AM/FM antenna amplifier |
| 9 | Telephone control module |
| 10 | Bluetooth antenna |
| 11 | AM/FM antenna |
| 12 | DAB band 3 antenna amplifier (market dependent) |
| 13 | DAB/SDARS module (DAB version shown, SDARS version similar) (market dependent) |
