Removal And Installation: Removal

All vehicles

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.

2. Refer to: Wheel and Tire

   Vehicles with convertible top

3. Refer to: Loadspace Trim Panel - Convertible

   Vehicles without convertible top

4. Refer to: loadspace Trim Panel - Vehicles Without: Convertible Top

   All vehicles

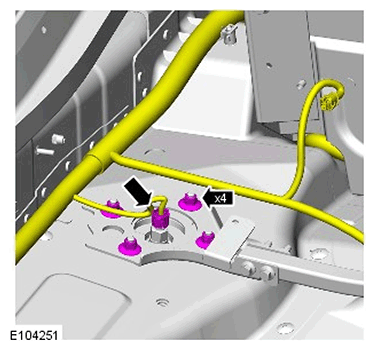

5. Torque Specification: 27 Nm

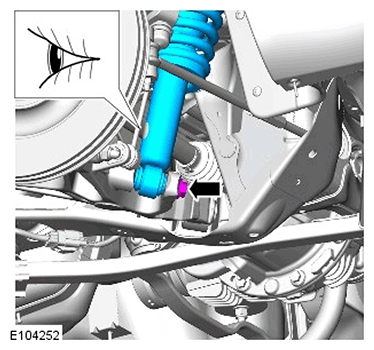

CAUTION:
• Note the fitted position of the component prior to removal.
• Make sure the alignment mark points towards the front of the vehicle.

6. Torque Specification: 133 Nm

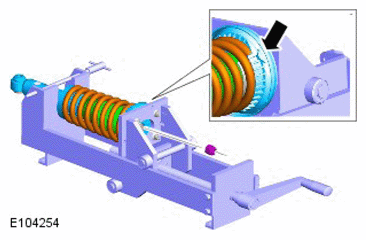

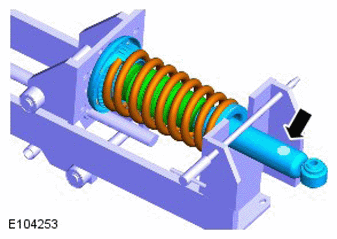

7. • Make sure that the spring and shock absorber assembly is installed to the spring compressor with the alignment mark facing upwards.
CAUTION:
• Take extra care when handling the component.
• Note the fitted position of the component prior to removal.

9. Torque Specification: 27 Nm
