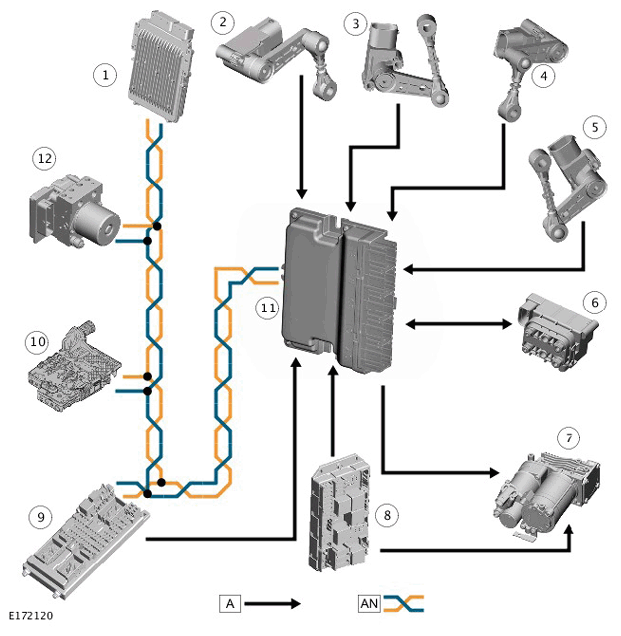

Control Diagram
NOTE:
A
= Hardwired; AN
= High Speed (HS) Controller Area Network (CAN) powertrain systems bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | Front right height sensor |
| 3 | Rear right height sensor |
| 4 | Front left height sensor |
| 5 | Rear left height sensor |
| 6 | Valve block |
| 7 | Suspension air supply unit |
| 8 | Rear Junction Box (RJB) |
| 9 | Central Junction Box (CJB) |
| 10 | Transmission Control Module (TCM) |
| 11 | Integrated Suspension Control Module (ISCM) |
| 12 | Anti-lock Brake System control module (ABS) |
