Rear Muffler (G1269298): Removal

WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

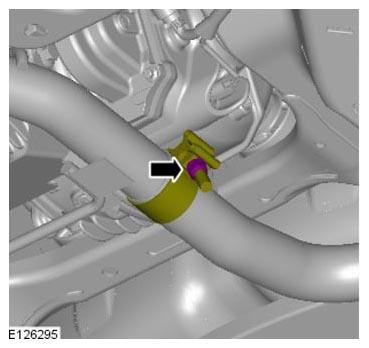

  2. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Left-hand shown, right-hand similar.
    G11292536

    Torque  : 55 Nm

  3. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE:
    • Left-hand shown, right-hand similar.
    • Apply lubricant to the exhaust mount to aid installation.
    G11292529
