Exhaust System (G1269296): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING:
    • Make sure to support the vehicle with axle stands.
    • Observe due care when working near a hot exhaust system.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Removal and Installation).

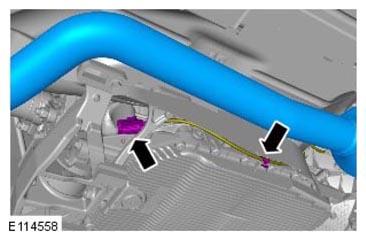

  3. G11292521

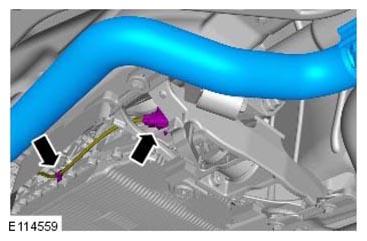

  4. G11292526
  5. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

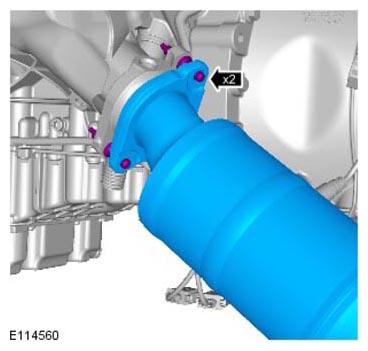

    G11292527

    Torque Specification: 40 Nm

  6. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

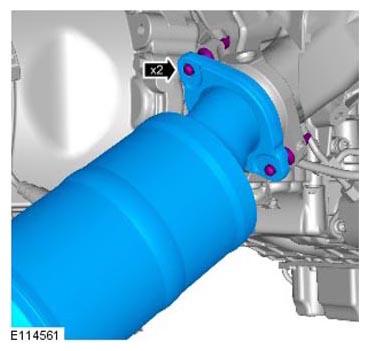

    G11292528

    Torque Specification: 40 Nm

  7. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: Left-hand shown, right-hand similar.

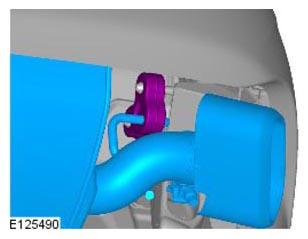

    G11292529
  8. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

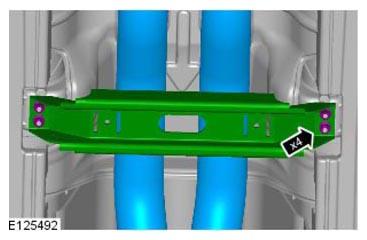

    G11292530

    Torque Specification: 9 Nm

  9. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: This step requires the aid of another technician.

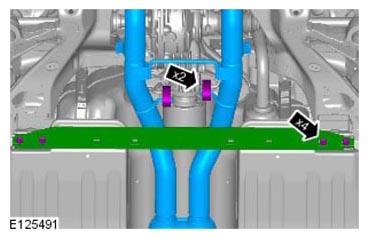

    G11292531

    With assistance, remove the exhaust system.

    General Equipment:  Transmission jack

    Torque Specification: 30 Nm

  10. NOTE: Do not disassemble further if the component is removed for access only.

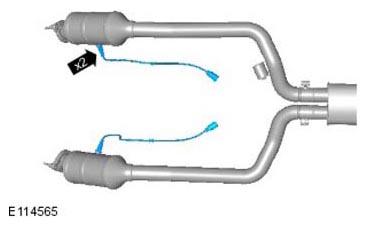

G11292532
