Brake Master Cylinder (G1268356): Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

CAUTION:

Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
Be prepared to collect escaping fluids.
Make sure that all openings are sealed. Use new blanking caps.

For additional information, refer to: Brake Fluid Reservoir (Removal and Installation).

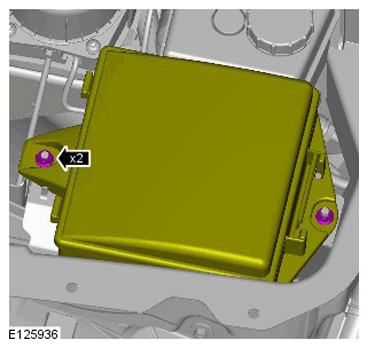

Right-hand drive vehicles

All vehicles

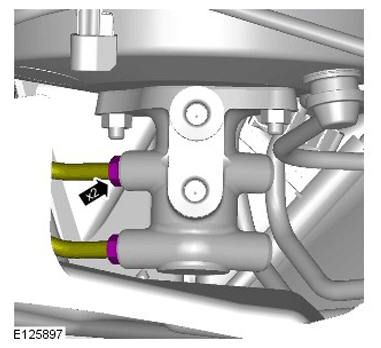

CAUTION:
- Make sure that all openings are sealed. Use new blanking caps.
- Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

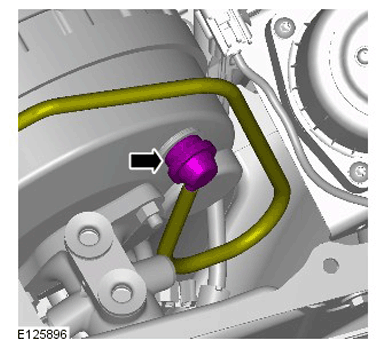

Torque Specification: 17 Nm

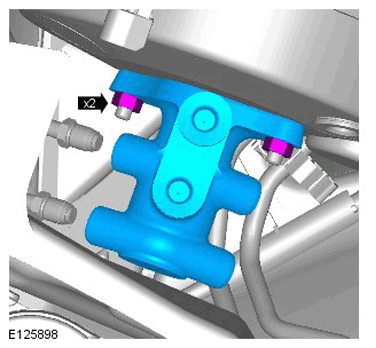

Torque Specification: 25 Nm

Install new retaining nuts.
