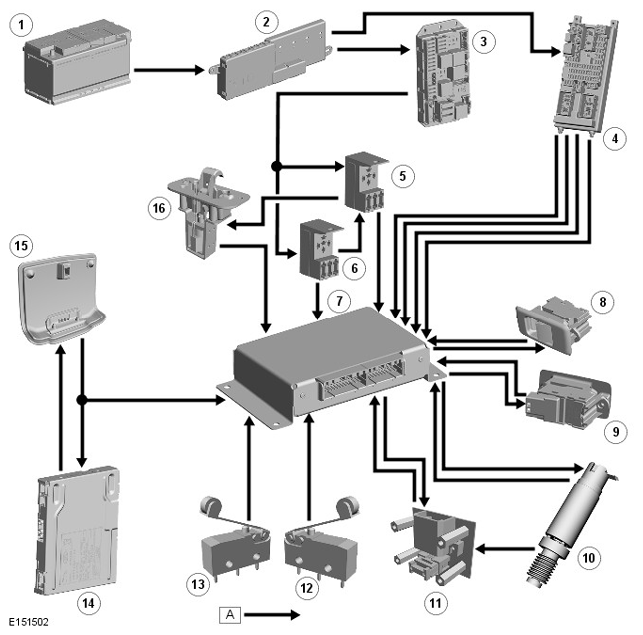

Control Diagram
NOTE:
A
= Hardwired
| ITEM | DESCRIPTION |
|---|---|
| 1 | Primary battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Rear Junction Box (RJB) |
| 4 | Central Junction Box (CJB) |
| 5 | Rear floor console junction box |
| 6 | Cool box junction box |
| 7 | Rear Entertainment Control Module (RECM) |
| 8 | Table switch - left |
| 9 | Table switch - right |
| 10 | Table motor |
| 11 | Table motor encoder connector Printed Circuit Board (PCB) |
| 12 | Table forward switch |
| 13 | Table stowed switch |
| 14 | Rear Seat Entertainment (RSE) control module |
| 15 | RSE remote control docking station |
| 16 | Table latch solenoid |
