Instrument Cluster: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. CAUTION: If a new instrument cluster is to be installed, the Jaguar approved diagnostic equipment must be connected prior to removal, the data must then be downloaded from it. Failure to follow this instruction, could result in permanent damage to the instrument cluster.

    Fully extend and lower the steering column for access.

  2. Refer to Battery Disconnect and Connect (General Procedures).
  3. G11292923

    Torque specification: 2 Nm

  4. G11292924
  5. NOTE: The procedure must be carried out on both sides.

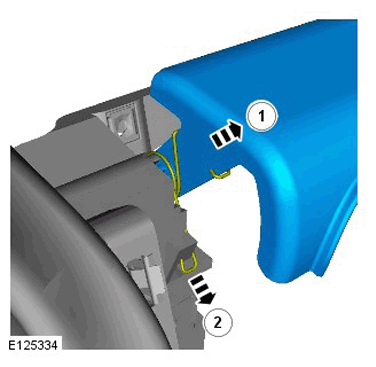

    G11293882

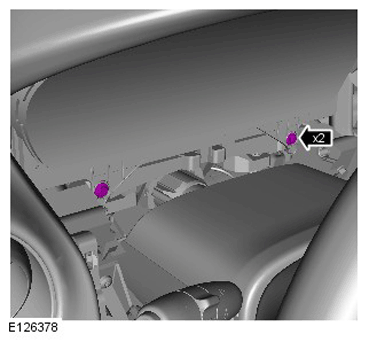

  6. G11293883

    Torque specification: 1.5 Nm

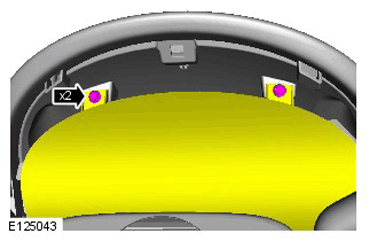

  7. G11293884

    Torque specification: 1.5 Nm

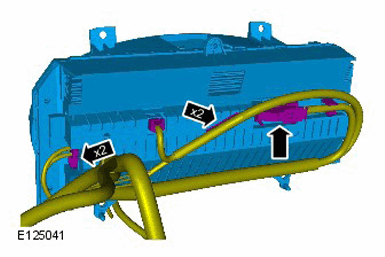

  8. G11293885
