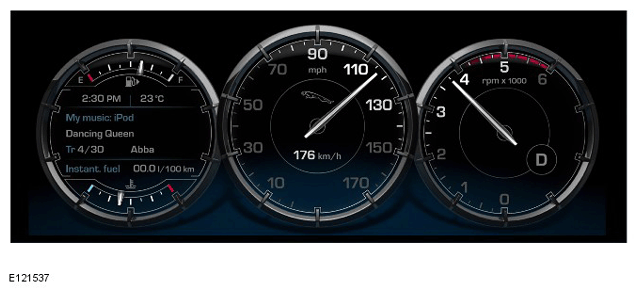

Standard Mode Display

In standard mode the:

Left Dial includes the following displays:

• Fuel gage
• Digital clock, ambient temperature or frost warning icon
• Information center with sub-displays for entertainment, phone and navigation
• Trip computer with sub-display for vehicle odometer, journey distance, average speed, average fuel consumption, instantaneous fuel consumption and distance to empty
• Engine temperature gage
• Warning indicators.

Center Dial includes the following displays:

• Speedometer
• Warning indicators.

Right Dial includes the following displays:

• Normally the tachometer
• Message center to display warnings and temporary alerts
• system control menus, selected using the joy pad on the right steering wheel switch.

The 3 zones can display warning indicators at dedicated locations as shown the following illustration.
