Instrument Cluster Menu

The driver can use the 'joy pad' on the right steering wheel switchpack to navigate through a series of menu-driven features. The menu's are displayed in the right side of the IC and override the tachometer display. If another function of higher priority is required to be displayed, then the menu display will also be overridden. The menu will be displayed until the driver closes the menu display.

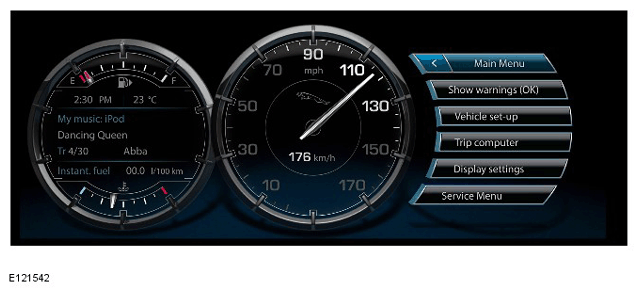

When the driver uses the joy pad on the right steering wheel switchpack the menu appears as vertical stack of 6 rows of menu selections as follows:

• Main Menu
• Show Warnings (OK)
• Vehicle Set-up
• Trip Computer
• Display Settings
• Service Menu.

Most menu levels are contained on one page, however, for lists with more than 6 sub-items additional up/down arrows are positioned adjacent to the menu to signify there are additional menu items to display. The menu items and sun-menu items will not obscure any active warnings in the IC.

Dependent on vehicle specification, if a feature is not present on the vehicle, it will not be shown in any of the menus.

To exit the menu navigate the cursor to the 'back' arrow on the left side of the Main Menu line. The menu will be removed and replaced with the tachometer or the message center, dependant on priority.

The Service Menu allows access to the following information:

• Vehicle Identification Number (VIN)
• Oil level display (not dynamic)
• Auto High Beam (AHB) sensitivity.

The AHB sensitivity is only available for NAS markets as a test option.
