Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2010 Jaguar XF and 2009 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Remove and discard the blanking caps.
  1. Install the transmission fluid cooler tubes.
    • Install new O-ring seals.
    • Tighten to 11 Nm.
      GJ0005347
    2. NOTE: Remove and discard the blanking caps.
  2. Install the transmission fluid cooler tubes.
    • Install new O-ring seals.
    • Tighten to 23 Nm.
      GJ0005289
  3. Attach the transmission fluid cooler tubes to the retaining bracket.
    GJ0005446
  4. Attach the transmission fluid cooler tubes to the retaining bracket.
    GJ0005290
  5. Install the splash shield.
    GJ0005346
  6. Install the retaining bracket.
    GJ0005445
  7. Lower the vehicle.
  8. Remove the special tool.
    GJ0004849
  9. Install the engine cover. Refer to ENGINE COVER - V8 S/C 5.0L PETROL (G1090386) information.
  10. Raise and support the vehicle.
  11. Install the left-hand engine mounting retaining nut.
    • Tighten to 63 Nm.
      GJ0003497
  12. Install the retaining bracket.
    • Tighten to 9 Nm.
      GJ0005444
  13. Install the left-hand catalytic converter heat shield retaining bracket.
    • Tighten to 22 Nm.
      GJ0005443
  14. Install the left-hand catalytic converter heat shield.
    • Tighten to 22 Nm.
      GJ0005442
  15. Install the retaining nut.
    GJ0005441
  16. Detach the steering gear.
    • Remove the cable tie.
      GJ0004068
  17. Install the steering gear.
    • Tighten to 100 Nm.
      GJ0004034

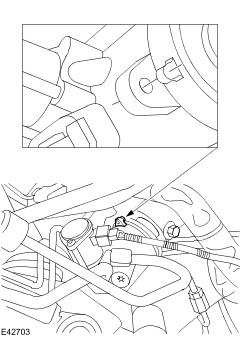

  18. Make sure the alignment mark, on the steering gear pinion seal protection cover, is central to the steering gear pinion casting.
    GJ0003473
  19. Attach the lower steering column.
    • Install the steering gear shaft pinch bolt.
      GJ0003466
  20. Attach the hose.
    GJ0005440
  21. Attach the wiring harness.
    GJ0005439
  22. Carry out a transmission fluid level check. Refer to Transmission Fluid Level Check information.
  23. Install the air deflector. Refer to AIR DEFLECTOR (G1569045) information.
  24. Lower the vehicle.
