Component Location
WARNING: This page is about a different car, the 2010 Jaguar XF and 2009 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|

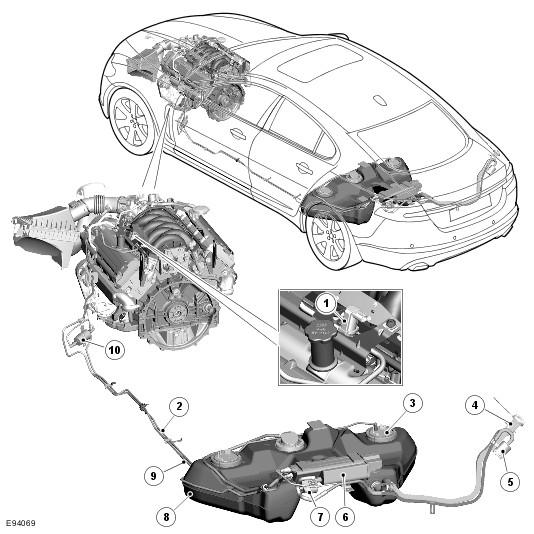

| Item Number |
Description |
| 1 |
Purge valve |
| 2 |
Fuel delivery pipe |
| 3 |
Fuel pump |
| 4 |
Fuel filler |
| 5 |
Tank leakage detection filter |
| 6 |
Charcoal canister |
| 7 |
Tank leakage detection pump |
| 8 |
Fuel tank |
| 9 |
Purge pipe |
| 10 |
Fuel Filter |
 Courtesy of JAGUAR CARS, INC.
|

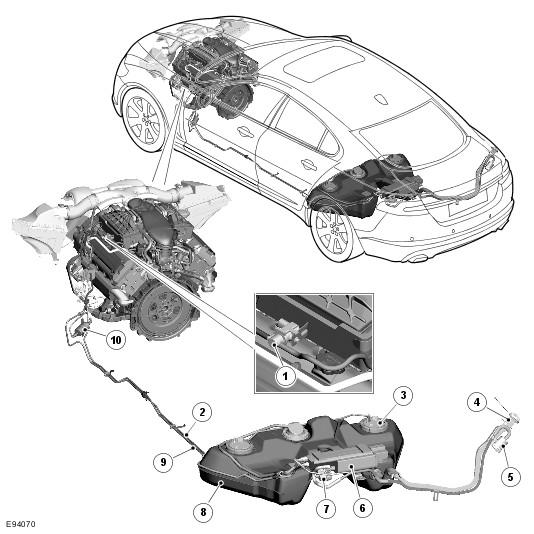

| Item Number |
Description |
| 1 |
Purge valve |
| 2 |
Fuel delivery pipe |
| 3 |
Fuel pump |
| 4 |
Fuel filler |
| 5 |
Tank leakage detection filter |
| 6 |
Charcoal canister |
| 7 |
Tank leakage detection pump |
| 8 |
Fuel tank |
| 9 |
Purge pipe |
| 10 |
Fuel Filter |
