External Controls - Component Location (G1448145)

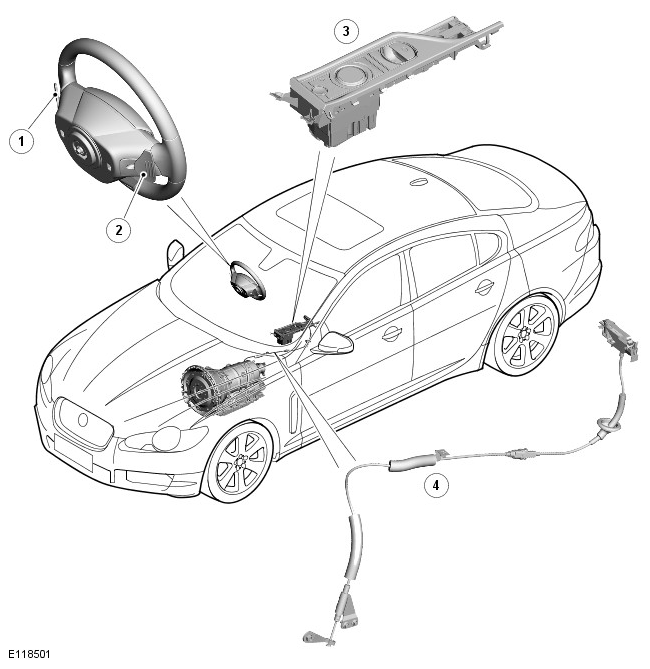

G11423689
ITEM DESCRIPTION
1 Upshift (+) paddle switch
2 Downshift (-) paddle switch
3 JaguarDrive selector
4 Emergency park release
