Air Bag And Safety Belt PRETENSIONER Supplemental Restraint System (SRS) - Component Location (G1520747)

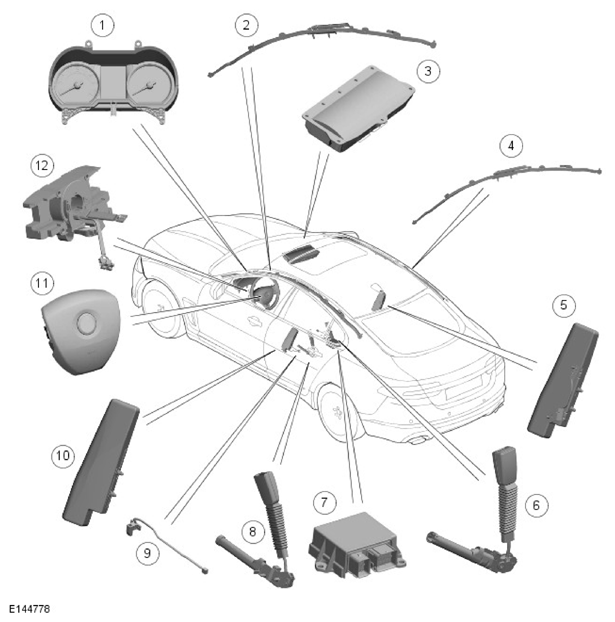

| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Left side air curtain |
| 3 | Passenger side airbag |
| 4 | Right side air curtain |
| 5 | Passenger side airbag |
| 6 | Passenger Safety Belt Pretensioner (PSBM) |
| 7 | Restraints Control Module (RCM) |
| 8 | Driver Safety Belt Pretensioner (DSBM) |
| 9 | Driver seat position sensor |
| 10 | Driver side airbag |
| 11 | Driver airbag |
| 12 | Clockspring |
| ITEM | DESCRIPTION |
|---|---|
| 1 | Occupant classification system pressure pad (NAS only) |
| 2 | Safety belt tension sensor (NAS only) |
| 3 | Occupant detection system pad (except NAS) |
| 4 | Occupant classification system control module (NAS only) |
| 5 | Right side impact sensor |
| 6 | Passenger airbag deactivation Light Emitting Diode (LED) |
| 7 | Rear right side impact sensor |
| 8 | Battery |
| 9 | Rear left side impact sensor |
| 10 | Left side impact sensor |
| 11 | Front left impact sensor |
| 12 | Front right impact sensor |

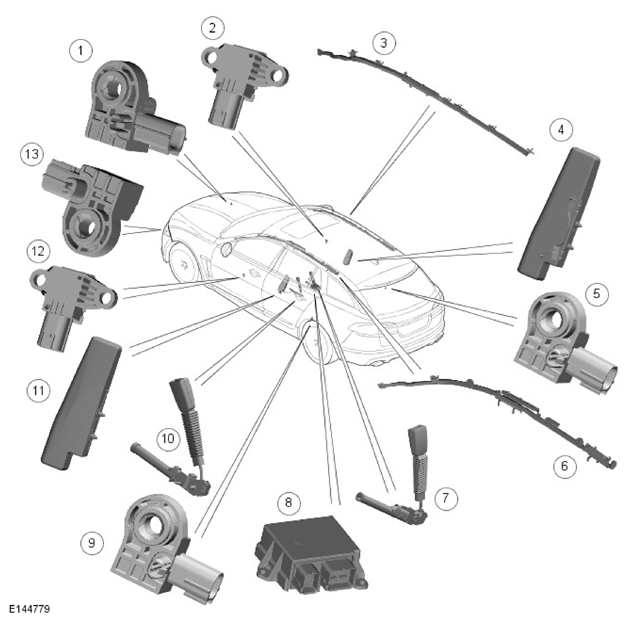

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front right impact sensor |
| 2 | Right side impact sensor |
| 3 | Right side air curtain |
| 4 | Passenger side airbag |
| 5 | Rear right side impact sensor |
| 6 | Left side air curtain |
| 7 | Passenger Safety Belt Pretensioner (PSBM) |
| 8 | Restraints Control Module (RCM) |
| 9 | Rear left side impact sensor |
| 10 | Driver Safety Belt Pretensioner (DSBM) |
| 11 | Driver side airbag |
| 12 | Left side impact sensor |
| 13 | Front left impact sensor |
